| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Failure Instantaneous Energy | |
| Approval Agency | |
| Body Length | |
| Body Temperature at 100% Max Current | |
| Body Width | |
| C Dimension | |
| Certification | |
| Current | |
| Diameter | |
| Dissipation Constant | |
| Lead Diameter | |
| Lead Spacing | |
| Lead Style | |
| Material Type | |
| Maximum Capacitance @ 120 VAC | |
| Maximum Capacitance @ 240 VAC | |
| Maximum Capacitance @ 440 VAC | |
| Maximum Capacitance @ 680 VAC | |
| Maximum Recommended Energy Rating | |
| Mounting Type | |
| R @ 25°C | |
| R @ Current | |
| Resistance at 50% Max Current | |
| Termination Style | |
| Thermal Time Constant | |
| Thickness | |
| Tolerance | |
| ul_file_number |

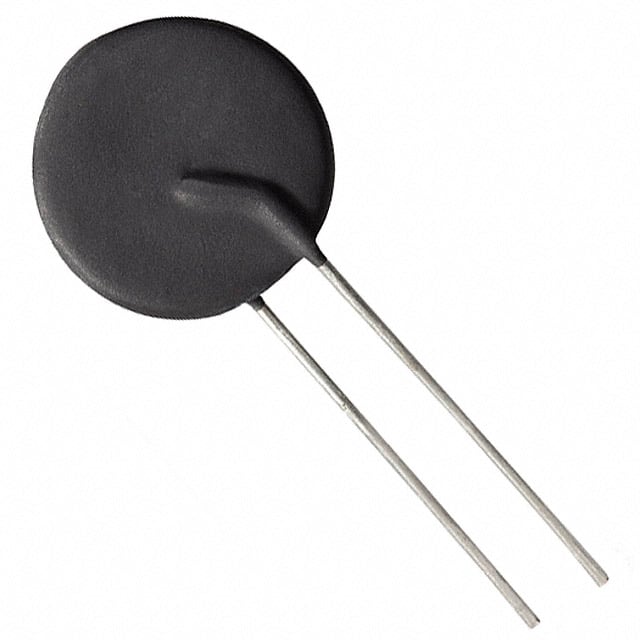

The MS32 10015 is an inrush current limiter (ICL) from Ametherm, featuring a resistance of 10 Ω at 25°C with ±25% tolerance. It is rated for a maximum steady state current of 15 A up to 65°C.
This ICL offers a maximum recommended energy rating of 250 J and an actual failure instantaneous energy of 500 J. It provides capacitance handling up to 19,250 µF at 120 VAC, 4,341 µF at 240 VAC, 1,003 µF at 440 VAC, and 500 µF at 680 VAC.
The component is housed in a 31 mm diameter disc package with a thickness of 9.3 mm and radial leads with 7.8 mm spacing. It is through-hole mountable and features straight leads. The device is UL recognized (File E209153) and ISO9001:2008 certified.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.41 | $8.41 |
| 5+ | $6.98 | $6.98 |
| 25+ | $5.79 | $5.79 |
| 50+ | $5.34 | $5.34 |
| 100+ | $4.92 | $4.92 |
| 250+ | $4.42 | $4.42 |
| 500+ | $4.07 | $4.07 |
| 1,000+ | $3.75 | $3.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 Ω at 25°C, ±25% tolerance.
15 A up to 65°C.
Maximum recommended energy rating is 250 J; actual failure instantaneous energy is 500 J.
Disc package, 31 mm diameter, 9.3 mm thickness, through-hole mounting with radial leads, 7.8 mm lead spacing.
RoHS3 Compliant (unverified, low confidence).
UL recognized (File E209153) and ISO9001:2008 certified.
Maximum capacitance at 120 VAC is 19,250 µF; at 240 VAC is 4,341 µF; at 440 VAC is 1,003 µF; at 680 VAC is 500 µF.
