| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31 pcs
|
31 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

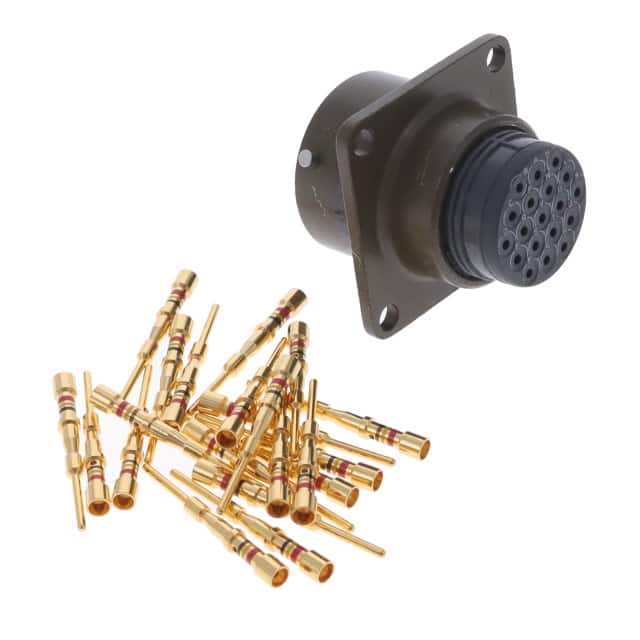

This ITT Cannon MS3122E14-19P is a circular connector assembly designed for robust connections. It features 19 positions with male pins in a receptacle configuration, suitable for panel mounting with a flange and bayonet lock fastening.
The connector operates within a temperature range of -55°C to 125°C and has a current rating of 7.5A, with a voltage rating of 600VAC and 850VDC. The primary and shell materials are aluminum alloy, finished in Olive Drab Cadmium, with gold-plated contacts for reliable conductivity. It is environment resistant.
This component is RoHS3 compliant and has an MSL rating of 1. Its orientation is normal, and it is designed for crimp termination. The shell size is 14-19.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MS3122E14-19P has 19 positions.
The voltage rating is 600VAC and 850VDC.
The current rating is 7.5A.
The operating temperature range is -55°C to 125°C.
It is a panel mount connector with a flange mounting feature.
It is a receptacle connector with male pins.
The termination style is Crimp.
