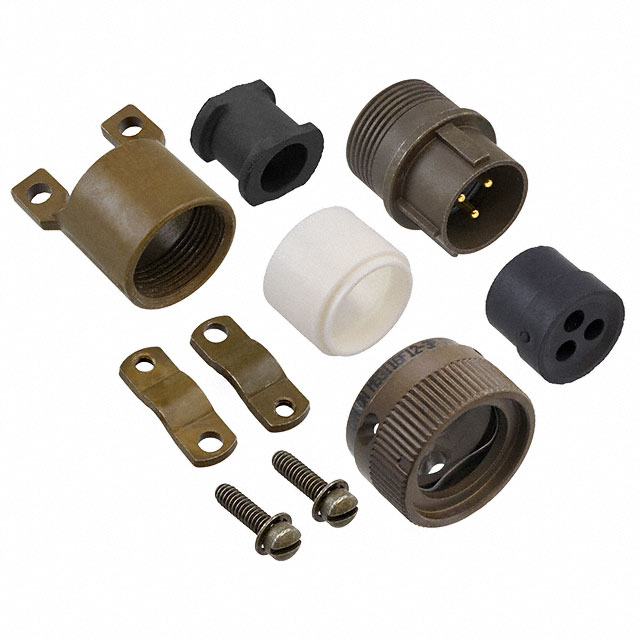

MS3116F123P MS3116F123P is a 3-position circular connector plug with male pins, gold solder cup contacts, and IP65 protection. It features a bayonet lock and cable clamp for secure connections.
Mfr Part #:

MS3116F123P

Available from 1 distributors
Mfr Name: Souriau-Sunbank by Eaton
Souriau-Sunbank by Eaton
MS3116F123P is a 3-position circular connector plug with male pins, gold solder cup contacts, and IP65 protection. It features a bayonet lock and cable clamp for secure connections.
✓ Total Stock: 1 pcs

MS3116F123P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MS3116F123P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Finish
Current Rating (Amps)
Fastening Type
Features
Ingress Protection
Lead Style
Material Flammability Rating
Military Grade
Mounting Type
Number of Positions
Operating Temperature
Orientation
Primary Material
Shell Finish
Shell Material
Shell Size
Shielding
Termination
View Similar Products (0)

MS3116F123P Description

Short technical summary and product information.

The MS3116F123P is a circular connector plug from Souriau-Sunbank by Eaton. It has 3 male pin contacts with gold finish for reliable conductivity. The connector is designed for free hanging (in-line) mounting with solder cup termination. The shell is made of aluminum alloy with olive green cadmium finish, providing durability and corrosion resistance. It is shielded and rated IP65 for dust tight and water resistance. The operating temperature range is -55°C to 125°C. The bayonet lock ensures quick and secure mating. A cable clamp is included for strain relief. This connector is suitable for industrial and harsh environment applications requiring reliable power and signal connections.

MS3116F123P Quick Information

Product Type: Circular Connector Assembly
Series: Military, MIL-DTL-26482 G Series I, 851
Canonical Name: Circular Connector Plug, Male Pins, 3 Positions, Shell Size 12-3, Solder Cup, Gold Contacts
Subcategory: Circular Connector Plug

MS3116F123P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

MS3116F123P Features

  • 3 male pin contacts with gold finish.
  • Rated for 13A continuous current.
  • IP65 dust tight and water resistant.
  • Bayonet lock for secure mating.
  • Solder cup termination for easy wiring.

MS3116F123P Applications

  • Used in industrial control systems.
  • Suitable for military and aerospace applications.
  • Ideal for harsh environment connections.
  • Common in power and signal distribution.

MS3116F123P FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the MS3116F123P have?

3 positions.

What is the current rating of the MS3116F123P?

13 A.

What is the mounting type for the MS3116F123P?

Free hanging (in-line).

What is the ingress protection rating?

IP65 - dust tight and water resistant.

What is the operating temperature range?

-55°C to 125°C.

What is the shell material and finish?

Aluminum alloy with olive green cadmium finish.

What type of termination does it use?

Solder cup.
