| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Lead Style | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Termination | |
| Termination Style | |
| Voltage Rating |

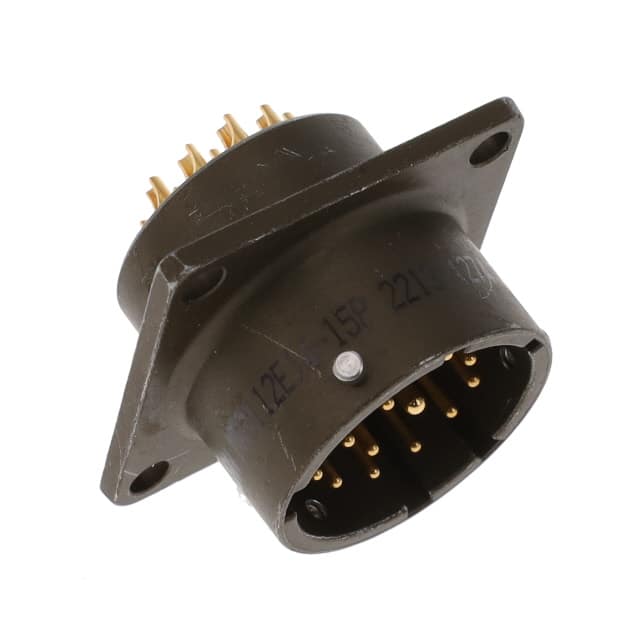

The MS3112E14-15P is a circular connector receptacle from ITT Cannon, designed for panel mount applications with flange mounting. It accommodates 15 male pins in a shell size 14-15 with a bayonet lock fastening system.
Electrical ratings include 7.5 A and 13 A current (pin dependent) and voltage ratings of 600 VAC and 850 VDC. The operating temperature range is -55 °C to 125 °C, making it suitable for demanding environments.
The connector uses solder cup termination for reliable wiring. The aluminum alloy shell with olive drab cadmium finish provides durability and environment resistance. Contacts are finished with gold for low resistance and corrosion protection.
15 positions.
7.5 A and 13 A, depending on the pin.
600 VAC and 850 VDC.
Panel mount with flange.
Solder cup.
Aluminum alloy shell with olive drab cadmium finish.
-55 °C to 125 °C.
