| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Lead Style | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Termination | |
| Voltage Rating | |
| Voltage Rating DC | |
| Wire Gauge |

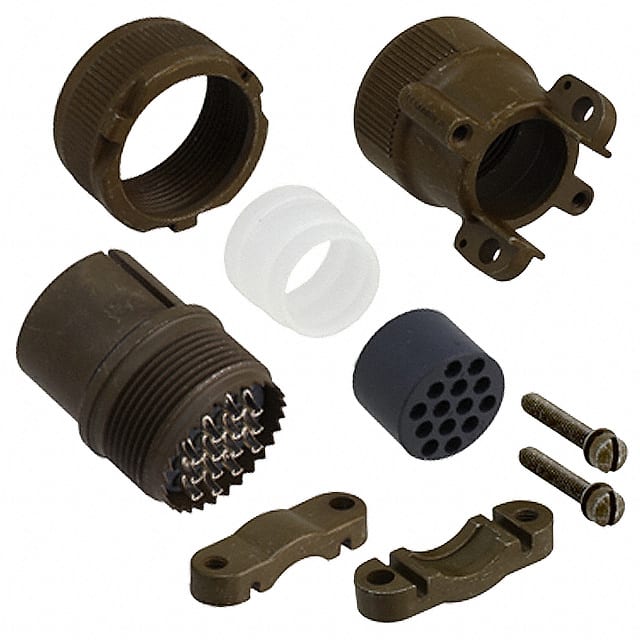

The MS3106F20-27P from ITT Cannon is a MIL-C-5015 compliant circular connector plug designed for demanding industrial and military applications. It offers 14 male pin positions with silver-plated machined contacts, terminated via solder cups. The connector uses a threaded coupling mechanism for secure mating and is intended for free hanging in-line mounting.
The shell is made of high-strength aluminum alloy with an olive drab cadmium finish, providing corrosion resistance and environmental protection. Rated for 22A current (dependent on contact size) and 500VAC/700VDC voltage, this connector operates over a wide temperature range of -55°C to 125°C. It accommodates wire sizes from 0 to 20 AWG and is rated for a minimum of 500 mating cycles.
Typical applications include industrial controls, test equipment, traffic signals, and bus systems. The connector meets the mechanical and electrical performance requirements of MIL-C-5015, ensuring reliability in harsh environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $74.29 | $74.29 |
| 10+ | $63.15 | $63.15 |
| 25+ | $59.20 | $59.20 |
| 50+ | $56.37 | $56.37 |
| 100+ | $53.69 | $53.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions.
22A per contact, depending on contact size.
500VAC and 700VDC.
Free hanging in-line (cable mount).
-55°C to 125°C.
Solder cup termination.
Aluminum alloy shell with olive drab cadmium finish.
