| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Size | |
| Current Rating (Amps) | |
| Durability | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Termination | |
| Termination Style | |
| Voltage Rating |

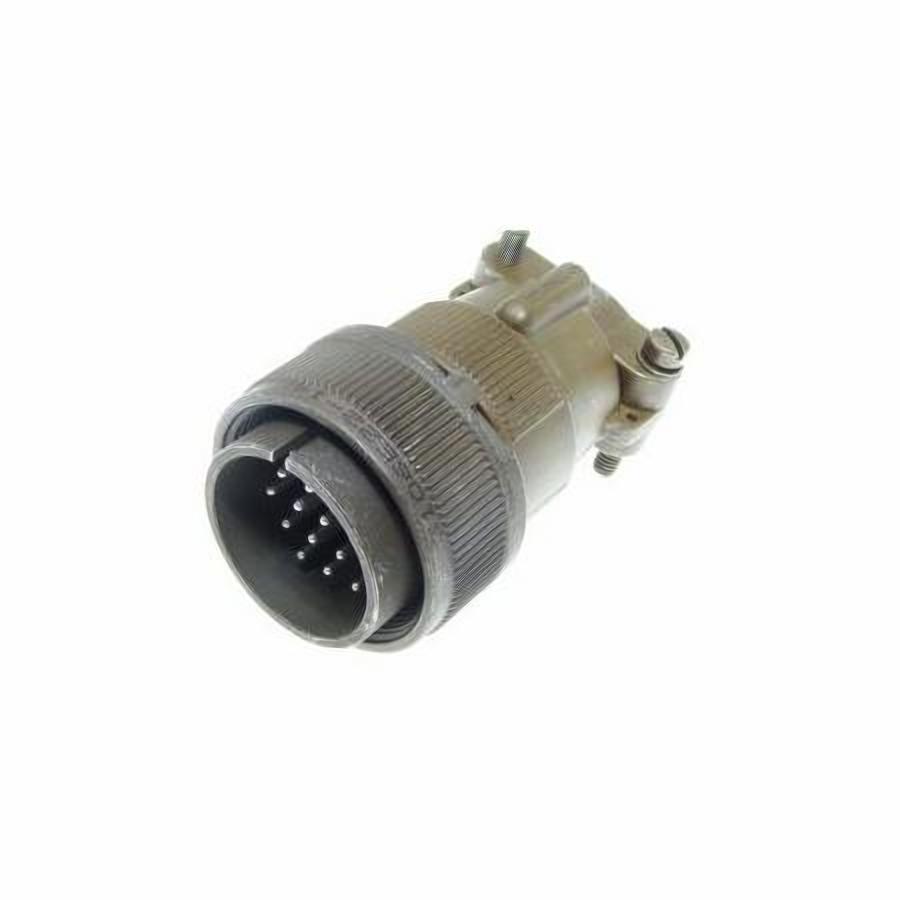

The MS3106E22-14P is a 19-position circular connector plug from ITT Cannon, featuring male pins with silver plating. This connector uses a solder cup termination style and is designed for free-hanging (in-line) mounting with a threaded coupling mechanism. The connector shell is made of aluminum alloy with an olive drab cadmium finish, providing corrosion resistance and environmental protection. It is rated for a current of 22A and can withstand voltages up to 500VAC and 700VDC. The operating temperature range is -55°C to 125°C. Additional features include a cable clamp and coupling nut for secure cable management. The contacts are size 16 silver-plated, rated for 13A test current with a 49mV potential drop. The connector can withstand high potential tests from 1000V to 7000V RMS depending on service rating. It supports wire accommodation from 0 to 20 AWG. The connector has a minimum durability of 500 mating cycles. This connector is suitable for industrial control, test equipment, and other applications requiring a reliable, environment-resistant circular connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $149.03 | $149.03 |
| 10+ | $121.09 | $121.09 |
| 25+ | $101.97 | $101.97 |
| 50+ | $88.06 | $88.06 |
| 100+ | $74.52 | $74.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
19 positions.
22 A.
500 VAC and 700 VDC.
Free Hanging (In-Line).
Plug, Male Pins.
Aluminum Alloy with Olive Drab Cadmium finish.
-55°C to 125°C.
