| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | 1626 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Fastening Type | |
| Ingress Protection | |
| Lead Style | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style |

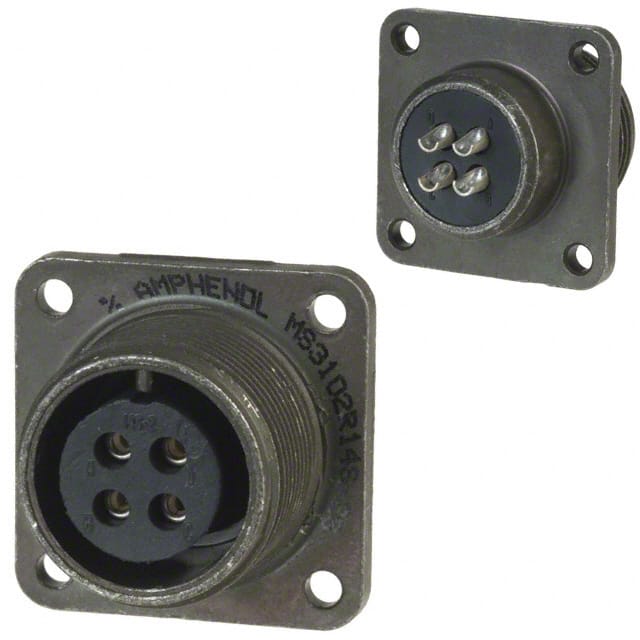

The MS3102R14S-2S is a 4-position circular connector receptacle manufactured by Amphenol Industrial Operations. It is designed for panel mount applications with a flange mounting feature, providing secure installation in panels or bulkheads. The connector uses solder cup termination for easy and reliable wire attachment, and a threaded coupling mechanism ensures a robust connection.
The shell is made of aluminum alloy with an olive drab chromate over cadmium finish, offering corrosion resistance and durability. The contacts are silver plated for good conductivity. The connector has a shell size of 14S-2 and accommodates a cable opening of 0.750 inches (19.05 mm). It is unshielded and has an orientation of N (normal).
Environmentally, the connector is rated as environment resistant and operates over a temperature range of -55°C to 125°C. It is suitable for use in industrial, military, and aerospace applications where reliable circular connectors are required.
4 positions.
Panel mount with flange.
Solder cup.
-55°C to 125°C.
14S-2.
Silver.
No, it is unshielded.
