| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Material | |
| SVHC Present | |
| Thread Size |

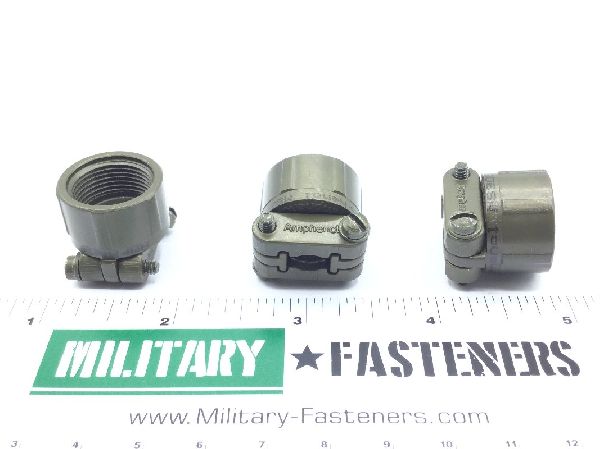

The MS3057-4A is an electrical cable connector cable clamp from QPL, designed for secure cable management. This clamp features a double clamping action, with or without a bushing, ensuring a reliable connection.
Constructed from aluminum alloy with a cadmium surface treatment, the MS3057-4A offers durability and resistance to environmental factors. It has a body diameter ranging from 0.781 to 0.843 inches and a body height from 0.844 to 0.906 inches. The cable opening diameter is a nominal 0.312 inches, accommodating a single cable.
This component adheres to the 81349-milc5015 government specification, indicating its suitability for demanding applications. The thread size is 0.625 inches with a 2b thread class and right-hand thread direction. Its size designation includes 10s, 12s, and 12, with a mounting facility type of one threaded coupling.
The MS3057-4A is packaged with a minimum quantity of 10 and has an approximate pack weight of 0.305 lb.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is 0.625 inches with a UNEF thread series, class 2B, right-hand direction.
It is made of aluminum alloy with a cadmium surface treatment.
It accepts cable sizes 10s, 12s, and 12.
It mounts via one threaded coupling.
Body diameter: 0.781 to 0.843 inches; body length: 0.781 to 0.843 inches; body height: 0.844 to 0.906 inches.
The cable opening diameter is 0.312 inches nominal.
