| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
960 pcs
|
960 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Hole Diameter | |
| Material | |
| Mounting Type | |
| Overall Diameter | |
| Thickness |

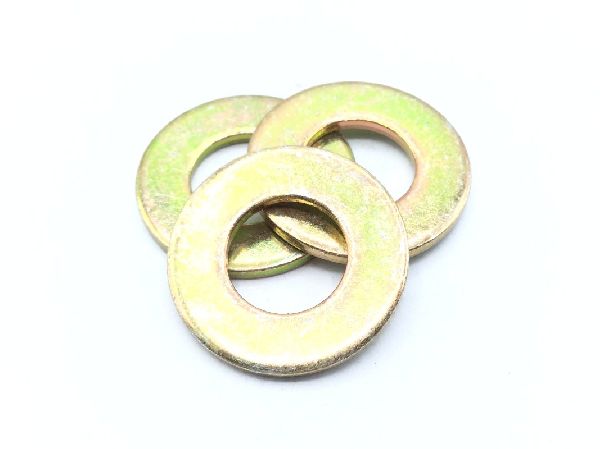

The MS27183-14 is a military standard flat washer from Q.P.L. This washer is constructed from steel, specifically comp 1008 through 1020, and features a cadmium and chromate surface treatment compliant with Federal Specification QQ-P-416, Type II, Class 3.
Key mechanical specifications include an inner hole diameter ranging from 0.401 to 0.421 inches, a thickness between 0.051 and 0.080 inches, and an overall diameter between 0.805 and 0.827 inches. The washer has a rectangular cross-sectional shape with round edges and a round center hole.
This flat washer is designed for demanding applications, including use in MRAP-RG-33 armored utility vehicles, MRAP Buffalo MK2A2, and MRAP M-ATVs with CS13 POP and SNE. It is supplied in standard packages of 100 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The overall diameter ranges from 0.805 to 0.827 inches.
The hole diameter ranges from 0.401 to 0.421 inches.
It is made from steel, specifically grades 1008 through 1020 per ASTM A109.
The surface treatment is cadmium and chromate per Federal Specification QQ-P-416, Class 3, Type 2.
The thickness ranges from 0.051 to 0.080 inches.
The cross sectional shape is rectangular with round edges.
The standard package quantity is 100 pieces.
