| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | 8217 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Material | |
| Mounting Hole Diameter |

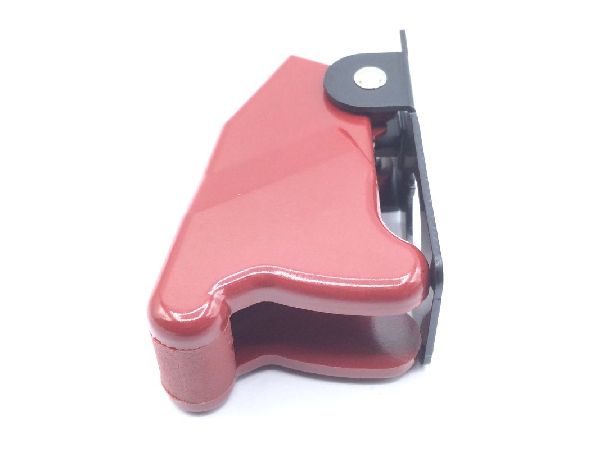

The MS25224-3 is a toggle switch guard from QPL, designed to protect toggle switches. This guard features a steel bracket with a black painted finish and a molded plastic cover, available in multiple colors, including red for this specific model.
Key specifications include an overall height of 1.125 inches, an overall width of 0.75 inches, and an overall length of 1.812 inches. The mounting method is an unthreaded hole with a diameter of 0.48 inches. The surface treatment is enamel.
This toggle guard is part of the TG series and is MS approved and QPL'd. It is designed for use with 2 and 3-position switches with 15/32-32 threaded bushings. The guard features spring-loaded covers that lock in either the open or closed positions, providing flexibility and security for the switch actuator.
Installation is straightforward, with mounting via two hex nuts from the front panel. An optional panel seal is provided with each switch. This model is suitable for various applications requiring protection and locking of toggle switches.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The overall length is 1.812 in, width is 0.75 in, and height is 1.125 in.
The unthreaded mounting hole diameter is 0.48 in.
The material is steel.
The surface treatment is enamel.
The bracket is red.
It uses an unthreaded hole for mounting.
The standard package contains 1 piece.
