| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
275 pcs
|
275 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Head Style | |
| Length | |
| Material | |
| Product Series | |
| Thread Size |

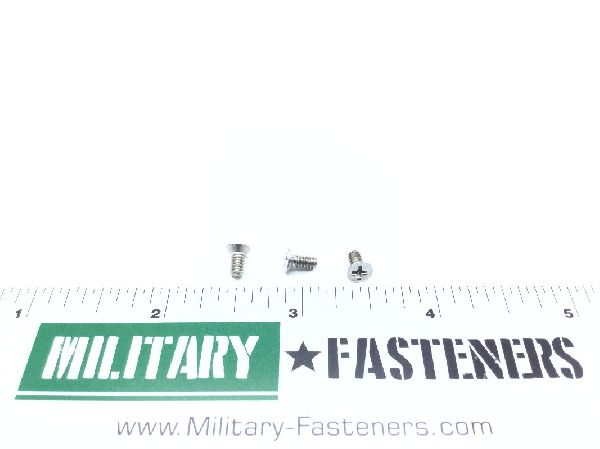

The MS24693C2 is a machine screw from Honeywell, designed for robust applications. This screw features a flat countersunk head style with a cross recess internal drive, making it suitable for applications requiring a flush finish.
Constructed from steel with a passivate surface treatment, the MS24693C2 meets stringent material specifications, including Federal Standard 66. It has a thread size of 4-40 UNC with a thread diameter of 0.112 inches and a thread length between 0.200 and 0.250 inches. The fastener length ranges from 0.219 to 0.250 inches, with a head diameter between 0.191 and 0.225 inches. The countersink angle is precisely between 99.0 and 101.0 degrees.
This component is part of the MS24693C series and is supplied in a standard package of 100 units. Its NSN is 5305-00-993-9189, and it falls under FSC category Screws / 5305. The ECCN is EAR99, indicating its export classification.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MS24693C2 has a thread size of 4 and a thread quantity per inch (tpi) of 40, with a UNC (coarse thread) series designator.
The thread diameter is 0.112 inches, the fastener length is between 0.219 and 0.250 inches, and the head diameter is between 0.191 and 0.225 inches.
The MS24693C2 screw is made of steel with a passivate surface treatment and meets Federal Standard 66.
The MS24693C2 features a flat countersunk head style and a cross recess type 1 internal drive.
The Moisture Sensitivity Level (MSL) for the MS24693C2 is 1 Unlimited.
