| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
504 pcs
|
504 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Head Style | |
| Length | |
| SVHC Present | |
| Tensile Strength | |
| Thread Size |

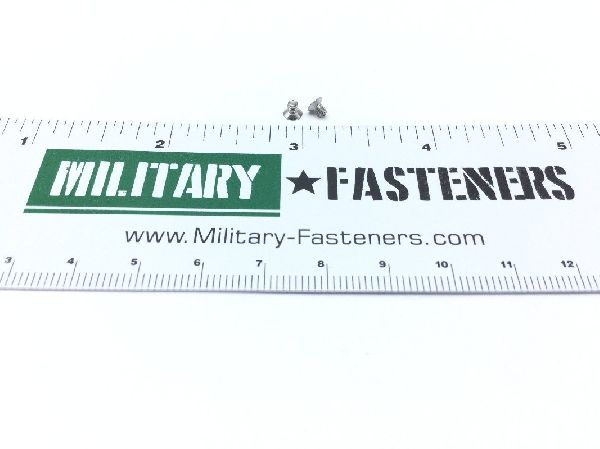

This MS24693-C16 machine screw from FEDERAL SC is manufactured to military standards. It has a nominal length of 1/8 inch and a thread size of 2-56 with 56 threads per inch (TPI). The screw is made of steel with a passivate surface treatment, meeting federal standard 66.
Key mechanical specifications include a thread diameter of 0.086 inches and a thread length between 0.037 and 0.088 inches. The fastener length is between 0.11 and 0.125 inches. It features a flat countersunk head with a diameter between 0.143 and 0.172 inches and a countersink angle between 99 and 101 degrees. The internal drive style is a cross recess type 1.
With a minimum tensile strength of 80,000 psi, this screw is designed for robust applications. The MS24693-C16 is classified under the MS24693 series and is packaged in quantities of 100. It is noted as RoHS3 Compliant, MSL 1 Unlimited, and REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fastener length is between 0.11 inches and 0.125 inches, with a nominal length of 1/8 inch.
The thread size is 2-56, with 56 threads per inch (TPI), and it is a UNC (coarse thread) series.
The screw is made of steel and features a passivate surface treatment.
The minimum tensile strength is 80,000 psi.
The head style is flat countersunk.
The standard package quantity is 100 units.
