| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
104 pcs
|
104 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Head Diameter | |
| Head Height | |
| Head Style | |
| Hole Diameter | |
| Material | |
| Thread Length |

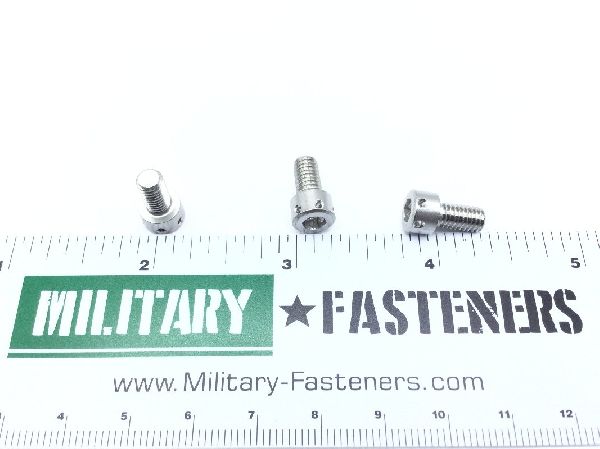

The Honeywell MS24673-1 is a military standard socket head cap screw designed for various fastening applications. This screw features a nominal length of 3/8 inches and a thread size of 10-32 UNF with a 3a thread class. It is manufactured from stainless steel with a passivate surface treatment, meeting Federal Specification QQ-P-35.
The screw has a flat chamfer head style with a hexagon internal drive. Key mechanical specifications include a thread diameter of 0.190 inches, a minimum tensile strength of 80,000 psi, and a minimum yield strength of 30,000 psi. The head diameter is between 0.303 and 0.312 inches, with a head height between 0.185 and 0.190 inches. The width across flats for the hexagon drive is between 0.156 and 0.159 inches.
This component is RoHS3 compliant and has an MSL rating of 1, indicating unlimited shelf life under standard conditions. It is supplied in a standard package quantity of 10 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Stainless steel.
0.190-32 UNF (Fine Thread) with Class 3A fit.
Minimum 80,000 psi.
Flat chamfer.
Hexagon internal drive.
Passivate per QQ-P-35 federal specification.
Yes, it is cross-referenced to NAS1351C3H6.
