| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Style | |
| Length | |
| Mounting Type | |
| Product Series | |
| SVHC Present | |
| Terminal Type | |
| Thread Size |

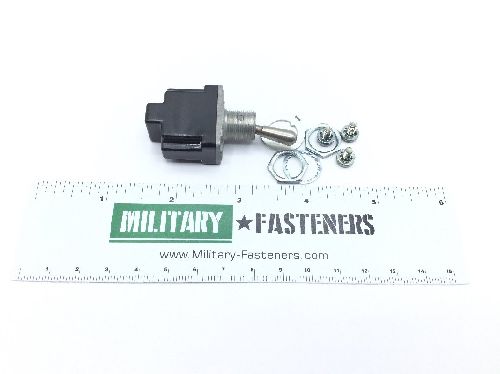

The MS2452322 from Eaton is a military standard toggle switch designed for reliable operation in demanding environments. This switch features a two-position, maintained action with one pole, offering simple on/off functionality. It is environmentally sealed and qualified to MIL-DTL-3950, ensuring durability and performance.
Key electrical specifications include a maximum voltage rating of 115.0 V AC and 28.0 V DC. The contact load current rating is up to 20.000 amperes resistive DC and 15.000 amperes resistive AC. The switch is fully enclosed for protection.
Mechanically, the MS2452322 has a threaded bushing mount with a bushing length between 0.455 and 0.485 inches. The body dimensions are 1.270 inches in length, 0.635 inches in width, and between 0.890 and 0.930 inches in height. It features a round actuator with maintained positions and screw terminals.
This toggle switch is suitable for applications requiring a robust and environmentally sealed switching solution. Its specifications make it a reliable choice for various industrial and military applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum AC voltage rating is 115.0 V AC.
The maximum DC voltage rating is 28.0 V DC.
The maximum resistive DC current rating is 20.000 amperes.
The maximum resistive AC current rating is 15.000 amperes.
It is mounted using a threaded bushing.
It has a round actuator with maintained positions.
The body length is 1.270 inches.
