| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CCT (K) | |
| CRI (Color Rendering Index) | |
| Color | |
| Configuration | |
| Current | |
| Features | |
| Height | |
| Lens Type | |
| Lumens | |
| Luminous Flux @ Current | |
| Operating Temperature | |
| Temperature | |
| Type | |
| Voltage | |
| Weight |

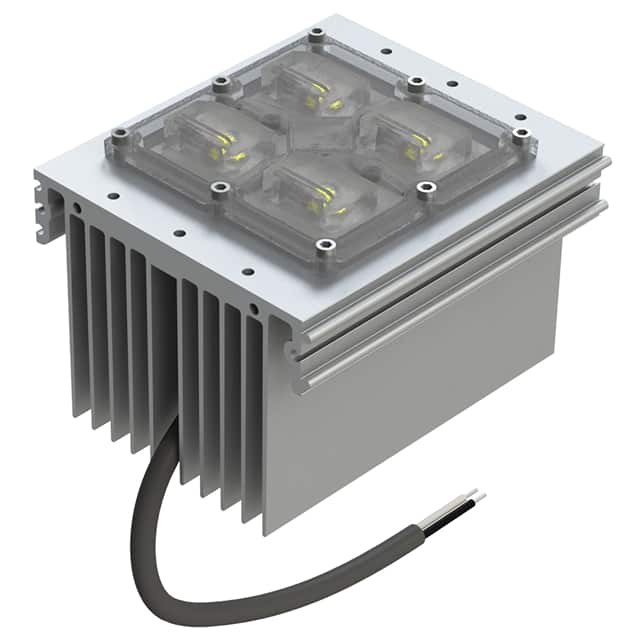

The New Energy MS22T1-C22-5070-W-1-00 is an IP67-rated LED module designed for high-quality lighting systems. Built with Cree XHP50.2 LEDs, this module provides a robust, flexible, and versatile building block for applications such as high bay, low bay, parking, and stadium lighting.
Key specifications include a 5000K color temperature with 70 CRI, delivering 4500 lumens typical at 700mA and 45.5V forward voltage. The module boasts an efficacy of 141 lm/W at this current. It operates within a temperature range of -40°C to +40°C and has a weight of 865g.
Features include IP67 protection for outdoor or harsh environments, optical flexibility with available LEDiL optics, and interlocking technology for easy integration of multiple modules. The module is designed for quick mounting to a housing or bracket, offering industry-leading lumen density and lumens per pound. It is RoHS compliant.
Primary applications include canopy, garage, portable, high bay, high mast, streetlight, stadium, and architectural lighting. The module's dimensions are 127.00mm H x 111.00mm W, with a height of 99.31mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to +40°C.
The typical forward voltage at 700mA is 45.5V.
The typical luminous flux at 700mA is 4500 lumens.
The efficacy is 141 lm/W at 700mA.
The color temperature is 5000K.
The CRI is 70.
The dimensions are 127.00mm H x 111.00mm W.
