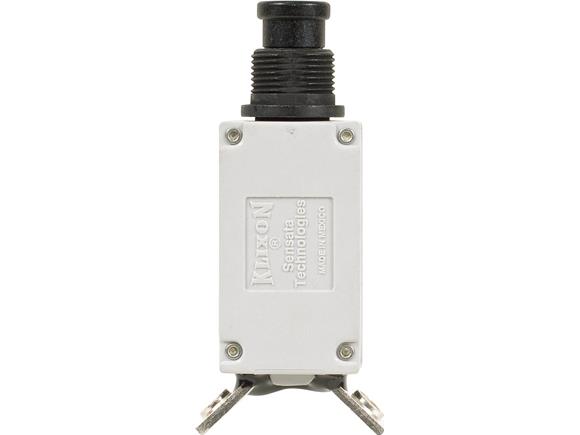

MS22073-15 The Mechanical Products MS22073-15 is a Series 4001 sub-miniature precision circuit breaker. It offers high interrupting capacity and meets military specification requirements.
Mfr Part #:

MS22073-15

Available from 1 distributors
Mfr Name: Mechanical Products
Mechanical Products
The Mechanical Products MS22073-15 is a Series 4001 sub-miniature precision circuit breaker. It offers high interrupting capacity and meets military specification requirements.
✓ Total Stock: 1 pcs
$ Price Range: $1.20

MS22073-15 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MS22073-15 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Acceleration
Failure Rate
Insulation Resistance
Weight
View Similar Products (0)

MS22073-15 Description

Short technical summary and product information.

The Mechanical Products MS22073-15 is a Series 4001 sub-miniature precision circuit breaker designed for high-performance applications. This single-pole breaker is qualified to MS22073 of MIL-C-5809 and weighs under 33 grams, making it suitable for space-qualified products and demanding designs.



It features a high interrupting capacity, capable of interrupting up to 6,000A at 30V DC and 3,500A at 120V, 400 Hz AC. The breaker is not sensitive to frequency or voltage and can be used on either AC or DC circuits. Its internal design provides a time-temperature characteristic for protecting wire or equipment.



Performance ratings include endurance of 2,500 cycles for inductive loads and 5,000 cycles for resistive loads. It meets military specification requirements for durability, vibration, mechanical shock, and acceleration, exceeding 30G's for shock and 10G's for acceleration.

MS22073-15 Quick Information

Product Type: Circuit Breaker
Series: 4001
Canonical Name: Series 4001 Sub-Miniature Precision Circuit Breaker
Subcategory: Sub-Miniature Precision

MS22073-15 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MS22073-15 Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

MS22073-15 Features

  • Sub-miniature precision circuit breaker design.
  • High interrupting capacity up to 6,000A.
  • Qualified to MS22073 of MIL-C-5809.
  • Lightweight, under 33 grams.
  • Suitable for AC or DC circuits.

MS22073-15 Applications

  • Ideal for space-qualified applications.
  • Protects wire and equipment effectively.
  • Used in demanding design requirements.
  • Meets military specification standards.

MS22073-15 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the interrupting capacity of the MS22073-15?

For currents 7½ to 25A: 2,000A at 30V DC and 500A at 120V 400Hz AC. For 1A: 3,500A at 120V 400Hz AC.

What are the endurance ratings?

2,500 cycles with inductive load and 5,000 cycles with resistive load at 120V 400Hz AC or 28V DC. Mechanical no-load cycling: 5,500 cycles.

Is the MS22073-15 qualified to any military specification?

Yes, it is qualified to MS22073 of MIL-C-5809.

What environmental tests does the circuit breaker pass?

Vibration per MIL-STD-202, Method 204, Condition A (10G, 10–500 Hz). Shock exceeding 30G's, 11 millisec half-sine pulse per MIL-STD-202, Method 213 Test J.

What is the weight of the MS22073-15?

33 grams (0.073 lbs).

What is the maximum voltage drop at rated current?

0.25V maximum at 15A rating.
