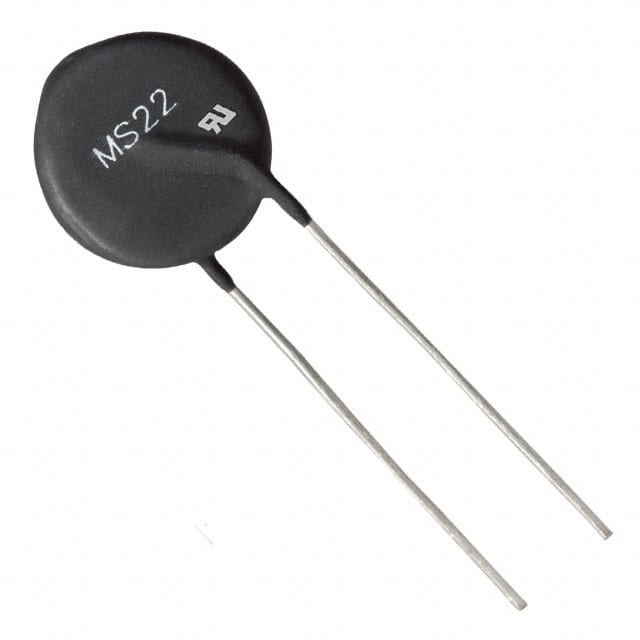

The Ametherm MS22 10008 is an inrush current limiter (ICL) designed to limit high inrush currents in power supply and capacitive load applications. It features a cold resistance of 10 Ω ±25% at 25°C and a maximum steady state current rating of 8 A. The device is rated for continuous operation up to 65°C ambient temperature.
Thermal characteristics include a dissipation constant of 55 mW/°C and a thermal time constant of 112 seconds. At full rated current, the body temperature reaches 194°C. The ICL can handle capacitive loads up to 13850 µF at 120 VAC, 3473 µF at 240 VAC, 802 µF at 440 VAC, and 400 µF at 680 VAC.
Mechanically, the part is a disc package with a diameter of 23 mm, thickness of 9.5 mm, and body length of 38 mm. It has straight leads with 7.8 mm lead spacing and 1 mm lead diameter. The material type is G. The device is UL approved (File E209153).
| Qty | Low | High |
|---|---|---|
| 1+ | $6.08 | $6.08 |
| 5+ | $5.04 | $5.04 |
| 10+ | $4.65 | $4.65 |
| 50+ | $3.86 | $3.86 |
| 100+ | $3.56 | $3.56 |
| 300+ | $3.13 | $3.13 |
| 500+ | $2.95 | $2.95 |
| 1,000+ | $2.92 | $2.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance at 25°C is 10 Ω with a tolerance of ±25%.
The maximum steady state current is 8 A up to 65°C ambient.
The disc diameter is 23 mm, thickness is 9.5 mm, and body length is 38 mm.
The maximum capacitance at 120 VAC is 13850 µF.
It is listed as RoHS3 Compliant, but this is unverified and low confidence.
The lead spacing is 7.8 mm.
The dissipation constant is 55 mW/°C.
