| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Diameter | |
| Material | |
| Material Thickness | |
| Mounting Type |

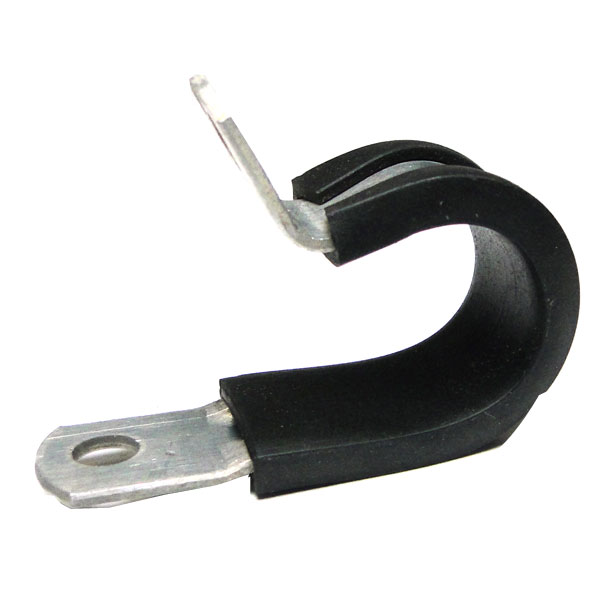

The MS21919DG9 is a loop clamp from HellermannTyton, designed for secure wire and cable management. This clamp is constructed with an Aluminum Alloy 2024 band and a protective rubber cushion, offering durability and vibration dampening.
Key mechanical specifications include a loop inside diameter of 0.563 inches, a material thickness of 0.050 inches, and a band diameter of 0.204 inches. The overall width is 0.500 inches. It features an offset mount style with a round, unthreaded tongue hole type, providing versatile mounting options. The center-to-center distance between the loop and mounting hole is 0.752 inches, and the distance from the loop center to the tongue end is 0.970 inches.
This clamp adheres to material classification standards, including Qq-a-250/5 Fed Spec Single Material Response Band. Its design is classified under nondefinitive spec/std data as 4 Type And A Class. The MS21919DG9 is suitable for applications requiring reliable clamping and protection for wires and conduits.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The loop inside diameter is 0.563 inches.
The material thickness is 0.050 inches.
The band diameter is 0.204 inches.
The overall width is 0.500 inches.
The mounting style is offset mount.
The clamp uses an Aluminum Alloy 2024 band and a rubber cushion.
