| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
520 pcs
|
520 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Locking Feature | |
| Material | |
| SVHC Present | |
| Temperature Rating | |
| Thread Size |

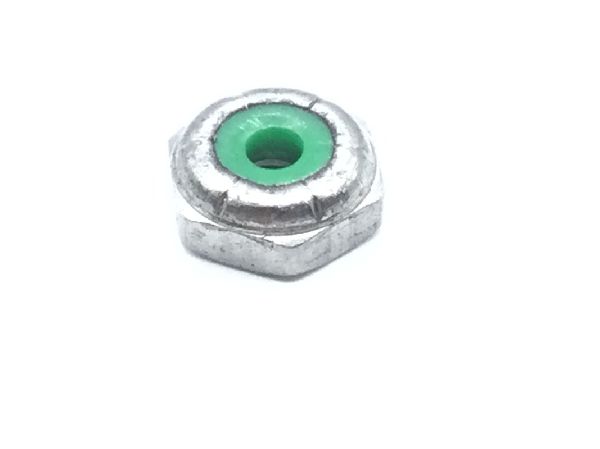

The MS21083C06 is a Military Standard self-locking hexagon nut from QPL. It is designed with a 6-32 thread size and a UNJC thread series, featuring a 3B thread class.
Constructed from stainless steel with a polyamide locking insert, this nut offers prevailing torque with a nonmetallic insert for secure fastening. The surface treatment is passivated, except for the insert, and it meets the Qq-p-35 federal specification. The nut has a height of 0.141 inches and a width across flats between 0.305 and 0.313 inches.
This self-locking nut is rated for a temperature of 250.0 degrees Fahrenheit and has a bearing surface finish of 125.0 microinches. It is suitable for applications such as MRAP RG-33 AUV vehicles. The minimum order quantity is 25 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
250°F.
Stainless steel.
Prevailing torque with a plastic polyamide nonmetallic insert.
#6-32 UNJC, 3B class.
Passivated except for insert, compliant with QQ-P-35 federal specification.
MRAP RG-33 AUV.
0.141 inches.
