| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Locking Feature | |
| Material | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Temperature Rating | |
| Thread Size |

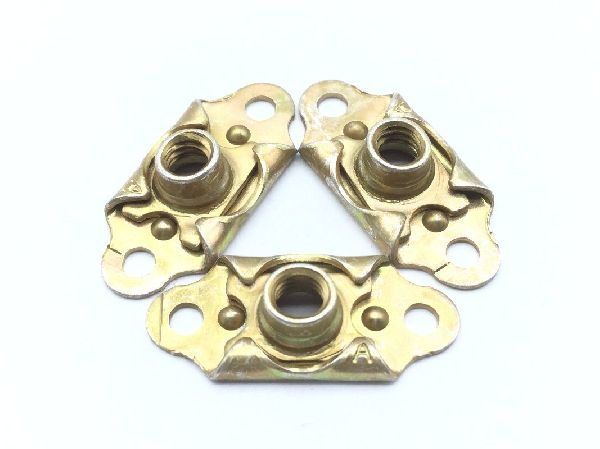

The MS21059-08 is a self-locking nutplate from QPL, designed for secure fastening applications. This component features an 8-32 thread size and is constructed from durable steel with a cadmium plating for corrosion resistance.
Key mechanical specifications include a nut length of 0.948 inches, a nut height of 0.250 inches, and a plate width ranging from 0.290 to 0.416 inches. The plate thickness is 0.032 inches, with mounting hole diameters between 0.098 and 0.103 inches. It utilizes straight holes for mounting and has a two-hole arrangement.
This nutplate is rated for temperatures up to 450.0 degrees Fahrenheit and features a prevailing torque, all-metal locking design. It is classified as a floating nut, providing flexibility in assembly. The surface treatment adheres to Cl 3 federal specification QQ-P-416.
The MS21059-08 is supplied with a soluble lubricant and has a hardness rating of 49.0 Rockwell C. It is packaged in standard quantities of 25 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is 0.164 inches.
The thread series is UNJC.
The thread class is 3B.
The nutplate is made of steel.
The surface treatment is cadmium plating.
The hardness rating is 49.0 Rockwell C.
The temperature rating is 450 °F.
