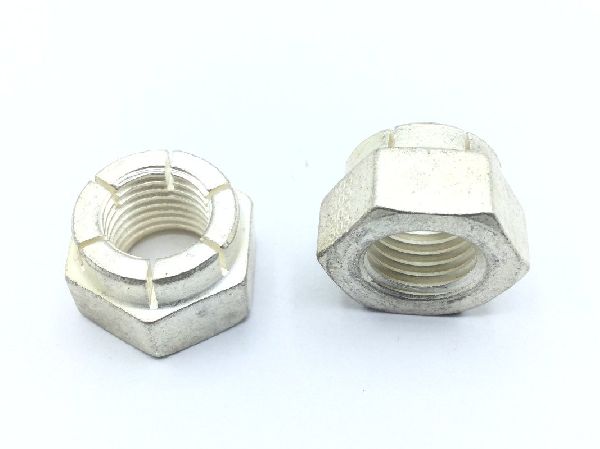

This MS21046C7 self-locking hexagon nut from QPL is designed for demanding applications. It features a 7/16-20 UNF thread with a 3B thread class and right-hand thread direction. The nut is made from corrosion-resistant stainless steel and is silver plated with an AMS 2410 specification, offering a temperature rating of up to 800.0 degrees Fahrenheit.
The nut has a prevailing torque, all-metal design for reliable locking. Its dimensions include a height between 0.435 and 0.469 inches and a width across flats between 0.679 and 0.690 inches. The bearing surface is flat, and it includes counterbore diameters of 0.447 and 0.487 inches with an 88.0-degree countersink angle.
This component is identified by NSN 5310-00-051-8619 and falls under FSC 5310 (Nuts and Washers). It is part of the MS21046C series. The product is packaged in increments of 2, with a minimum order quantity of 2.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is 7/16-20 UNF-3B (right-hand, fine thread).
The nut is made from stainless steel.
It uses a prevailing torque all metal design.
The nut is rated for 800 degrees Fahrenheit.
The nut has a silver plating per AMS 2410.
Standard package quantity is 2 pieces, with a minimum order quantity of 2.
The NSN is 5310-00-051-8619.
