| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
170 pcs
|
170 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Locking Feature | |
| Material | |
| SVHC Present | |
| Temperature Rating | |
| Thread Size |

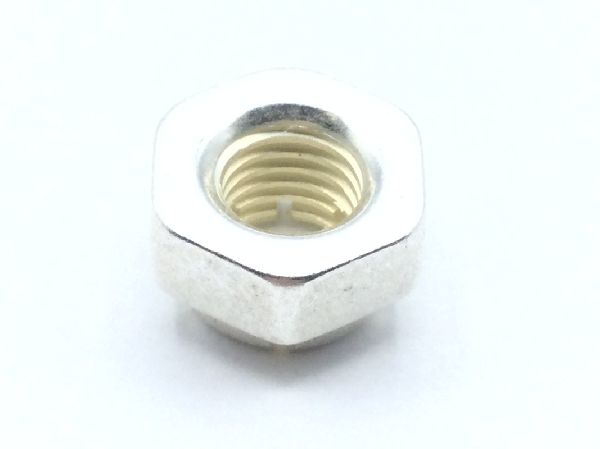

The MS21046C4 from Honeywell is a self-locking hexagon nut designed for demanding applications. It features a 1/4-28 UNF thread with a 3B thread class and a right-hand thread direction. Constructed from corrosion-resistant stainless steel with a silver plating, this nut is rated for continuous operation at temperatures up to 800 degrees Fahrenheit.
The nut's design includes a prevailing torque all-metal locking feature, ensuring secure fastening. Its dimensions include a height between 0.240 and 0.328 inches and a width across flats between 0.430 and 0.439 inches. The bearing surface is chamfered or washer-faced with a finish of 125 microinches. The countersink angle is 88.0 degrees.
This component is suitable for applications requiring reliable locking and resistance to vibration and thermal cycling. The silver plating provides additional corrosion resistance. The standard package quantity is 10 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is 0.250-28 UNF-3B (0.250 inch diameter, 28 threads per inch, UNF fine thread series, class 3B).
It is made of stainless steel.
Yes, it has a prevailing torque all metal design locking feature.
The temperature rating is 800 degrees Fahrenheit.
It has a silver surface treatment per AMS 2410 specification.
Nut height is 0.240 to 0.328 inches and width across flats is 0.430 to 0.439 inches.
The standard package quantity is 10.
