| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Locking Feature | |
| Material | |
| Product Series | |
| SVHC Present | |
| Temperature Rating | |
| Thread Size |

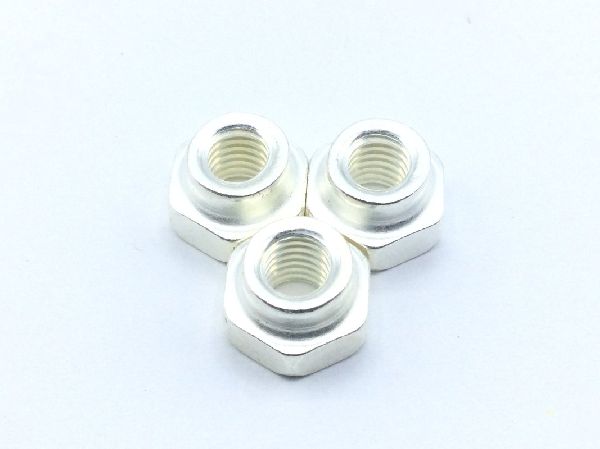

The Honeywell MS21046C3 is a self-locking hexagon nut designed for demanding applications. It features a 10-32 thread size with a UNJF thread series and a 3B thread class, ensuring secure fastening. Constructed from corrosion-resistant stainless steel and finished with silver plating, this nut offers durability and protection.
The nut has a regular height and a prevailing torque all-metal locking feature for reliable performance. Its bearing surface is chamfered or washer faced with a finish of 125.0 microinches. The countersink angle is 88.0 degrees, and the thread direction is right-hand.
With a temperature rating of up to 800.0 degrees Fahrenheit, the MS21046C3 is suitable for high-temperature environments. The specified surface treatment follows AMS 2410 standards. The nut's dimensions include a height between 0.208 and 0.250 inches and a width across flats between 0.367 and 0.376 inches.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MS21046C3 has a 10-32 UNJF thread (fine thread with external controlled root radius).
The operating temperature rating is 800°F.
The nut is made of stainless steel with a silver surface treatment.
Yes, it has a prevailing torque all-metal locking design.
The thread class is 3B.
The width across flats ranges from 0.367 to 0.376 inches.
