| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
630 pcs
|
630 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Locking Feature | |
| Material | |
| Product Series | |
| Temperature Rating | |
| Thread Size |

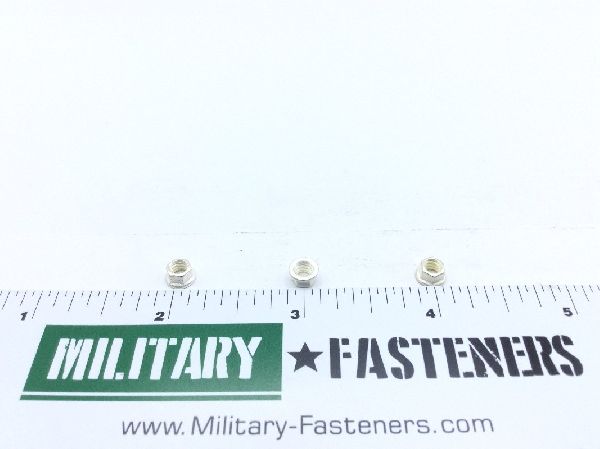

The MS21043-06 from PENN is a self-locking extended washer nut designed for reliable performance in demanding environments. It features a 6-32 thread size with a 3b thread class and a right-hand thread direction.
Constructed from corrosion and heat-resistant iron alloy 660, this nut is silver plated according to QQ-S-365 or AMS 2410 specifications. It boasts a prevailing torque, all-metal design for secure locking. The nut has a reduced hexagon and reduced height, with an overall height between 0.115 and 0.141 inches.
Key specifications include a temperature rating of 800.0 degrees Fahrenheit, a washer outside diameter of 0.244 inches, and a washer thickness of 0.010 inches. The width across flats ranges from 0.181 to 0.190 inches. This component is suitable for applications requiring robust fastening solutions.
The MS21043-06 is identified by NSN 5310-00-878-3291 and falls under FSC Nuts and Washers / 5310. It is part of the MS21043 product series.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MS21043-06 nut has a 6-32 thread size.
The MS21043-06 nut has a temperature rating of 800.0 degrees Fahrenheit.
The MS21043-06 nut is made of Iron alloy 660.
The MS21043-06 nut features a prevailing torque all metal design for locking.
The MS21043-06 nut has a silver surface treatment.
The NSN for the MS21043-06 nut is 5310-00-878-3291.
