| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Head Style | |
| Storage Temperature | |
| Tape & Reel |

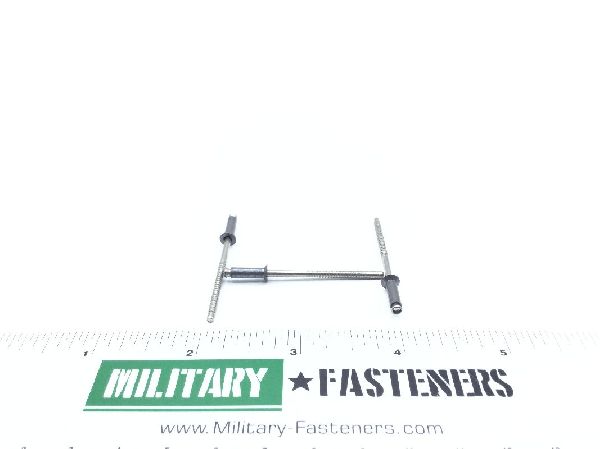

The MS20605R4W5 is a military standard blind rivet from Cherry Americas LLC. It is designed with a flush countersunk head style, accommodating angles less than 135 degrees.
The rivet has a shank diameter ranging from 0.123 to 0.128 inches and a self-plugging high clinch shank style. The head major diameter is a maximum of 0.229 inches. It utilizes a serrated stem-type expansion device and is lubricated with a dry film.
The grip length for this rivet is between 0.251 and 0.312 inches, with a countersink angle between 98.5 and 101.5 degrees. The sleeve is made from Iron Alloy 660, conforming to AMS 5731, and is passivated according to QQ-P-35. The stem is constructed from Steel Comp 305, conforming to ASTM A495, and is also passivated according to QQ-P-35.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The head style is flush (flat) countersunk with an included angle less than 135 degrees.
The shank diameter ranges from a minimum of 0.123 inches to a maximum of 0.128 inches.
The grip length is between 0.251 inches minimum and 0.312 inches maximum.
The sleeve is made of Iron Alloy 660 and the stem is made of Steel Comp 305.
The minimum order quantity is 25.
