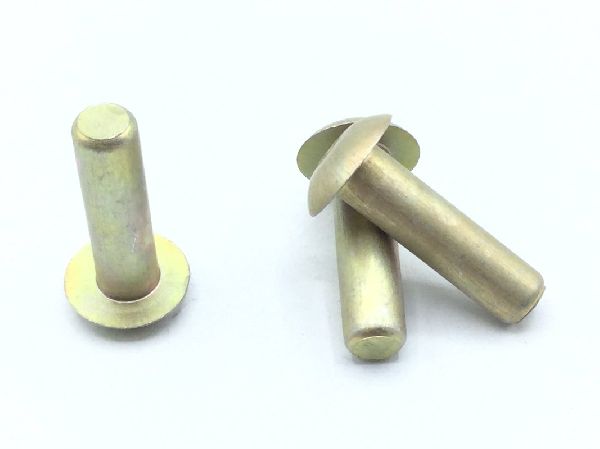

MS20470AD5-9 The MS20470AD5-9 is a solid rivet manufactured by Military Spec. It features a universal head and is made from aluminum alloy 2117.
Mfr Part #:

MS20470AD5-9

Available from 1 distributors
Mfr Name: Military Spec
Military Spec
The MS20470AD5-9 is a solid rivet manufactured by Military Spec. It features a universal head and is made from aluminum alloy 2117.
✓ Total Stock: 3 pcs
$ Price Range: $0.99

MS20470AD5-9 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MS20470AD5-9 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Head Style
Material
SVHC Present
View Similar Products (0)

MS20470AD5-9 Description

Short technical summary and product information.

This MS20470AD5-9 solid rivet from Military Spec is constructed from aluminum alloy 2117 and features a universal head style. It has a fastener length between 0.490 and 0.510 inches and a shank diameter between 0.155 and 0.160 inches.



The rivet offers a shear strength of 26,000 psi. The material specification adheres to Qq-a-430 federal specification. Surface treatment options include anodize or oxide film, with specifications following Mil-a-8625 or Mil-c-5541.



This rivet is supplied in a 1-pound standard package quantity, with an approximate pack weight of 1.012 lb. It is part of the MS20470 series of rivets.

MS20470AD5-9 Quick Information

Product Type: Solid Rivet
Series: MS20470
Canonical Name: MS20470AD5-9 Solid Rivet
Subcategory: Solid Rivet

MS20470AD5-9 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

MS20470AD5-9 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MS20470AD5-9 Features

  • Universal head solid rivet.
  • Made from aluminum alloy 2117.
  • Fastener length is 0.510 inches.
  • Shear strength of 26,000 psi.
  • Meets Qq-a-430 federal specification.

MS20470AD5-9 Applications

  • Used in general fastening applications.
  • Suitable for aerospace assemblies.
  • Ideal for structural bonding.
  • Common in automotive manufacturing.

MS20470AD5-9 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the material of the MS20470AD5-9 rivet?

The MS20470AD5-9 rivet is made from Aluminum alloy 2117.

What is the head style of the MS20470AD5-9 rivet?

The MS20470AD5-9 rivet features a Universal Head.

What is the fastener length of the MS20470AD5-9 rivet?

The fastener length of the MS20470AD5-9 rivet is between 0.490 and 0.510 inches.

What is the shear strength of the MS20470AD5-9 rivet?

The MS20470AD5-9 rivet has a shear strength of 26,000 psi.

What is the RoHS status of the MS20470AD5-9 rivet?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the MS20470AD5-9 rivet?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.

What is the REACH status for the MS20470AD5-9 rivet?

The REACH status is REACH Unaffected.
