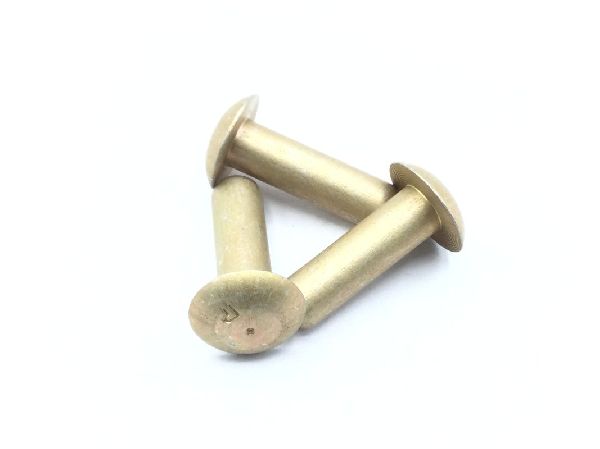

MS20470AD5-8 The Military Spec MS20470AD5-8 is a solid rivet with a universal head style and aluminum alloy 2117 material. It measures 9/16 inches in length and 5/32 inches in diameter.
Mfr Part #:

MS20470AD5-8

Available from 1 distributors
Mfr Name: Military Spec
Military Spec
The Military Spec MS20470AD5-8 is a solid rivet with a universal head style and aluminum alloy 2117 material. It measures 9/16 inches in length and 5/32 inches in diameter.
✓ Total Stock: 4 pcs
$ Price Range: $42.89

MS20470AD5-8 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MS20470AD5-8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Diameter
Head Style
Length
Material
View Similar Products (0)

MS20470AD5-8 Description

Short technical summary and product information.

The MS20470AD5-8 is a solid rivet manufactured by Military Spec, designed for robust fastening applications. This rivet features a universal head style and is constructed from aluminum alloy 2117, conforming to QQ-A-430 federal specification.



Key mechanical specifications include a fastener length between 0.552 and 0.572 inches, a grip length between 0.318 mils and 0.338 centimeters, and a head height between 0.067 and 0.077 inches. The head major diameter ranges from 0.296 to 0.328 inches, while the shank diameter is between 0.155 and 0.160 inches. The shank is straight with a radius chamfered tip.



This rivet offers a shear strength of 26,000 psi and is typically finished with an anodize or oxide film, meeting MIL-A-8625 or MIL-C-5541 military specifications for surface treatment. It is supplied in a 1-pound package, with an approximate pack weight of 1.009 lb.

MS20470AD5-8 Quick Information

Product Type: Solid Rivet
Series: MS20470AD5
Canonical Name: MS20470AD5-8 Military Standard Solid Rivet
Subcategory: Solid Rivets

MS20470AD5-8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MS20470AD5-8 Estimated Pricing

Qty Low High
1+ $42.89 $42.89

Estimated market price range - modelled values for guidance only, not live distributor offers.

MS20470AD5-8 Features

  • Universal head style solid rivet.
  • Constructed from aluminum alloy 2117.
  • Measures 9/16 inches in length.
  • Features a 5/32 inch shank diameter.
  • Shear strength of 26,000 psi.

MS20470AD5-8 Applications

  • Ideal for aerospace applications.
  • Suitable for structural fastening.
  • Used in demanding environments.
  • Reliable mechanical connections.

MS20470AD5-8 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the fastener length of the MS20470AD5-8 rivet?

The fastener length is between 0.552 and 0.572 inches.

What is the shank diameter of the MS20470AD5-8 rivet?

The shank diameter is between 0.155 and 0.160 inches.

What material is the MS20470AD5-8 rivet made from?

The rivet is made from Aluminum alloy 2117.

What is the head style of the MS20470AD5-8 rivet?

The head style is Universal.

What is the shear strength of the MS20470AD5-8 rivet?

The shear strength is 26000 psi.

What surface treatments are available for the MS20470AD5-8 rivet?

Surface treatments include Anodize or oxide film.
