| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
85 pcs
|
85 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Diameter | |
| Failure Rate | |
| Head Style | |
| Length | |
| Material | |
| Product Series |

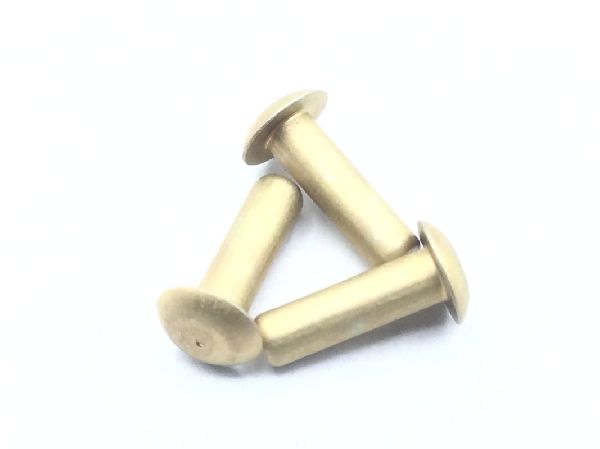

The MS20470AD3-5 is a solid rivet from National, designed for various fastening applications. This rivet features a universal head style and a straight shank. It is constructed from aluminum alloy 2117, conforming to Qq-a-430 federal specification.
The shank diameter measures between 0.093 and 0.097 inches, with a grip length ranging from 0.161 to 0.181 inches. The fastener length is between 0.302 and 0.322 inches. The head major diameter is between 0.178 and 0.196 inches, and the head height is between 0.04 and 0.05 inches. The surface treatment is an oxide film or anodize, compliant with Mil-c-5541 or Mil-a-8625 specifications.
This rivet has a shear strength of 26,000 psi. It is supplied in a standard package of 1 each and has approximately 3250 pieces per pound. The product series is MS20470AD, with NSN 5320-00-117-6816.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MS20470AD3-5 rivet is made of aluminum alloy 2117.
The MS20470AD3-5 rivet features a universal head style.
The shank diameter is between 0.093 and 0.097 inches.
The fastener length is between 0.302 and 0.322 inches.
The shear strength is 26,000 psi.
The product series is MS20470AD.
