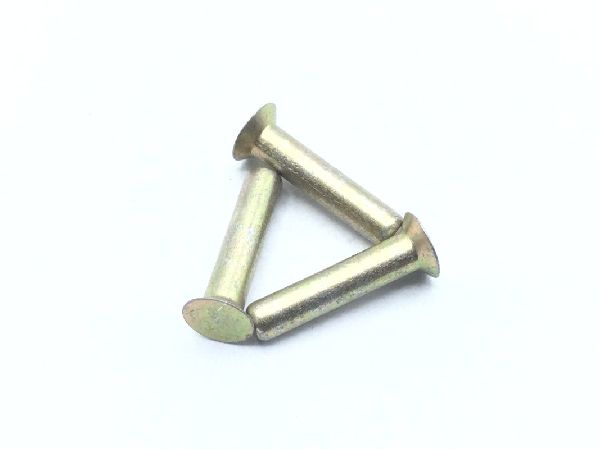

MS20427M3C7 The MS20427M3C7 is a solid rivet manufactured by AEROSPACE. It features a flush countersunk head and is made from Nickel alloy 400.
Mfr Part #:

MS20427M3C7

Available from 1 distributors
Mfr Name: Aerospace
Aerospace
The MS20427M3C7 is a solid rivet manufactured by AEROSPACE. It features a flush countersunk head and is made from Nickel alloy 400.
✓ Total Stock: 380 pcs
$ Price Range: $6.79

MS20427M3C7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
380 pcs
On Request
380 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MS20427M3C7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Head Style
Material
View Similar Products (0)

MS20427M3C7 Description

Short technical summary and product information.

The MS20427M3C7 is a military standard solid rivet from AEROSPACE. This fastener has a flush countersunk head style and a straight shank. It is constructed from Nickel alloy 400, conforming to Qq-n-281 fed spec, and features a cadmium surface treatment compliant with Qq-p-416, ty 2, cl 3.



The rivet has a fastener length ranging from 0.427 to 0.447 inches, a shank diameter between 0.093 and 0.097 inches, and a head major diameter of 0.155 to 0.190 inches. The countersink angle is specified between 98.5 and 101.5 degrees. It offers a shear strength of 49000 psi.



This component is part of the MS20427M3C series. It has a pack weight of approximately 0.113 lb and a minimum order quantity of 100 units. The MS20427M3C7 is designated with NSN 5320-00-216-1503 and ECCN EAR99.

MS20427M3C7 Quick Information

Product Type: Solid Rivet
Series: MS20427M3C
Canonical Name: MS20427M3C7 Solid Rivet
Subcategory: Rivets

MS20427M3C7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MS20427M3C7 Estimated Pricing

Qty Low High
1+ $6.79 $6.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

MS20427M3C7 Features

  • Nickel alloy 400 construction.
  • Flush countersunk head style.
  • Length measures 0.427 to 0.447 inches.
  • Shank diameter is 0.093 to 0.097 inches.
  • Cadmium surface treatment.

MS20427M3C7 Applications

  • Used in aerospace fastening applications
  • Suitable for high-strength mechanical assemblies
  • Ideal for countersunk installation
  • Corrosion-resistant nickel alloy construction

MS20427M3C7 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the fastener length of the MS20427M3C7 rivet?

The fastener length ranges from 0.427 to 0.447 inches.

What is the head style of the MS20427M3C7 rivet?

The head style is flush (flat) countersunk.

What material is the MS20427M3C7 rivet made from?

The rivet is made from Nickel alloy 400.

What is the shear strength of the MS20427M3C7 rivet?

The shear strength is 49000 psi.

What is the minimum quantity for the MS20427M3C7 rivet?

The minimum order quantity is 100 units.
