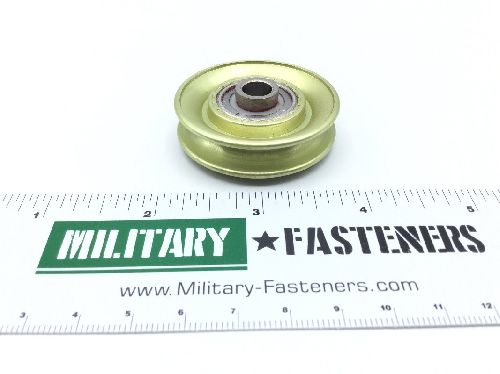

The MS20220A1 is a military standard groove pulley manufactured by Military Spec. This pulley is designed for use in flight control systems and is compatible with cable sizes of 1/8", 5/32", and 3/16".
Key mechanical specifications include a 5-inch groove diameter, a 0.314-inch bore diameter, and a face width of 0.422 inches. The pulley body is constructed from T4-canceled qq-a-268 aluminum alloy with an anodize surface treatment. It features a U-shaped groove with a radius of 0.097 inches and a depth of 0.250 inches. The overall length of the pulley is 0.625 inches.
This model includes a steel hub with an outside diameter of 1.755 inches and comes with a single ball bearing. It is designed in a webbed or spoked style and does not include features such as lightening holes, keying facilities, integral cooling vanes, or counterbore features. The MS20220A1 pulley is suitable for various applications requiring reliable cable management in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $110.81 | $110.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The bore diameter is 0.314 inches.
It accommodates cable sizes 1/8", 5/32", and 3/16".
The body is made of aluminum alloy.
It has a single ball bearing.
The groove diameter is 5 inches.
The surface treatment is anodize.
The design form is webbed.
