| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,007 pcs
|
1007 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Head Height | |
| Head Style | |
| Hole Diameter | |
| Material | |
| Thread Length | |
| Thread Size |

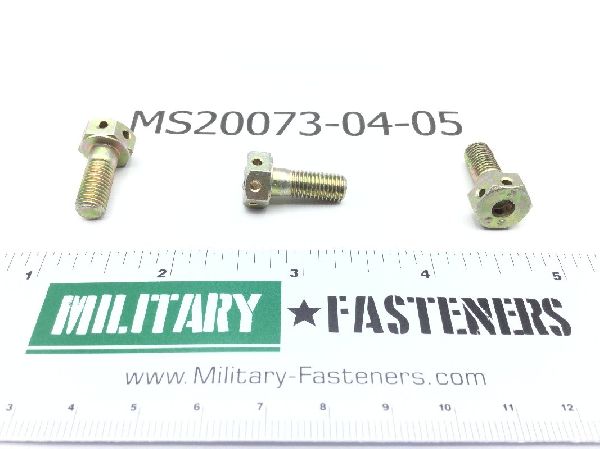

The MS20073-04-05 is a military standard machine bolt from Honeywell, designed for robust applications. It features a 0.250 inch thread diameter with a 1/4-28 UNF fine thread series and a thread class of 3A. The bolt has a grip length between 0.109 and 0.141 inches and a total fastener length between 0.641 and 0.688 inches.
Constructed from steel, this bolt meets various military specifications including Mil-s-5626, Mil-s-6049, Mil-s-6050, Mil-s-6098, Mil-s-6758, and AMS 6300. It is finished with a cadmium and chromate surface treatment compliant with QQ-P-416 Type 2 Cl 3.
The bolt has a hexagon head style with a height between 0.203 and 0.234 inches and a width between flats of 0.430 to 0.439 inches. It also features a drilled hexagon longitudinal hole with a diameter of 0.070 inches and a quantity of 6 holes. The minimum tensile strength is rated at 125,000 psi, with a hardness rating between 26.0 and 32.0 Rockwell C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is 1/4-28 UNF (fine thread) with a 3A class fit.
The bolt is made of steel, conforming to military specifications Mil-s-5626, Mil-s-6049, Mil-s-6050, Mil-s-6098, Mil-s-6758, and AMS 6300.
The minimum tensile strength is 125,000 psi.
The bolt has a cadmium and chromate surface treatment per QQ-P-416 Type 2 Class 3.
The bolt has six drilled longitudinal holes of 0.070 inch diameter, typically used for safety wiring.
The hardness rating is between 26.0 and 32.0 Rockwell C.
The head style is hexagon with a finished head.
