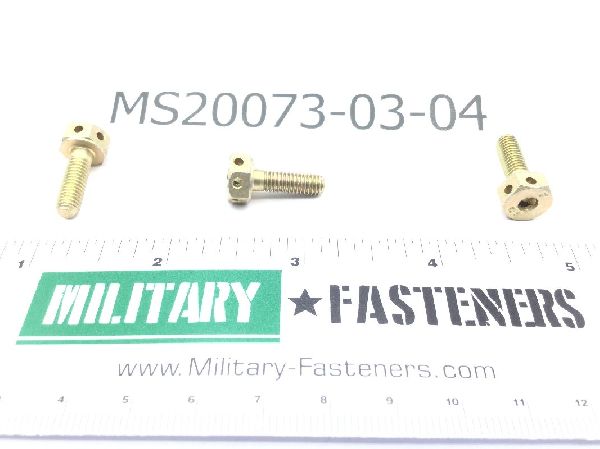

MS20073-03-04 The MS20073-03-04 is a machine bolt manufactured by Honeywell. It features a 0.190 inch thread diameter and is made of steel.
Mfr Part #:

MS20073-03-04

Available from 1 distributors
Mfr Name: Honeywell
Honeywell
The MS20073-03-04 is a machine bolt manufactured by Honeywell. It features a 0.190 inch thread diameter and is made of steel.
✓ Total Stock: 123 pcs
$ Price Range: $0.75

MS20073-03-04 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
123 pcs
On Request
123 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MS20073-03-04 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Head Height
Head Style
Hole Diameter
Length
Material
SVHC Present
Thread Length
Thread Size
View Similar Products (0)

MS20073-03-04 Description

Short technical summary and product information.

The MS20073-03-04 is a machine bolt from Honeywell, part of the MS20073 series. This bolt has a thread diameter of 0.190 inches and a thread size of 10-32 UNF, with a fine thread series.



Constructed from steel, it meets various material specifications including Mil-s-6049 and others. The fastener length ranges from 0.578 to 0.625 inches, with a grip length between 0.046 and 0.078 inches. It features a hexagon head with a height between 0.172 and 0.203 inches and a width between flats of 0.367 to 0.376 inches. The bolt has 6 drilled holes, each with a diameter of 0.070 inches, configured in a hexagon longitudinal pattern.



Surface treatment is cadmium with a specification of Type 2 cl 3 federal specification single treatment response qq-p-416. The minimum tensile strength is 125,000 psi, and the hardness rating is between 26.0 and 32.0 Rockwell C. This component is RoHS3 compliant.

MS20073-03-04 Quick Information

Product Type: Machine Bolt
Series: MS20073
Canonical Name: MS20073-03-04 Military Standard Machine Bolt
Subcategory: Bolt

MS20073-03-04 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MS20073-03-04 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MS20073-03-04 Features

  • 0.190 inch thread diameter.
  • 10-32 UNF fine thread series.
  • Steel material with cadmium plating.
  • Hexagon head with drilled holes.
  • Minimum tensile strength of 125,000 psi.

MS20073-03-04 Applications

  • Used in general mechanical assemblies.
  • Suitable for aerospace applications.
  • Ideal for fastening applications requiring specific thread pitch.
  • Component in military standard hardware.

MS20073-03-04 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the thread size of the MS20073-03-04 bolt?

The thread size is 10-32 UNF.

What is the material of the MS20073-03-04 bolt?

The material is steel.

What is the minimum tensile strength of this bolt?

The minimum tensile strength is 125,000 psi.

What is the surface treatment applied to the MS20073-03-04 bolt?

The surface treatment is cadmium.

What is the RoHS status of the MS20073-03-04 bolt?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level is 1 Unlimited.
