Mfr Part #:

MS16997-2

Mfr Name: Gould

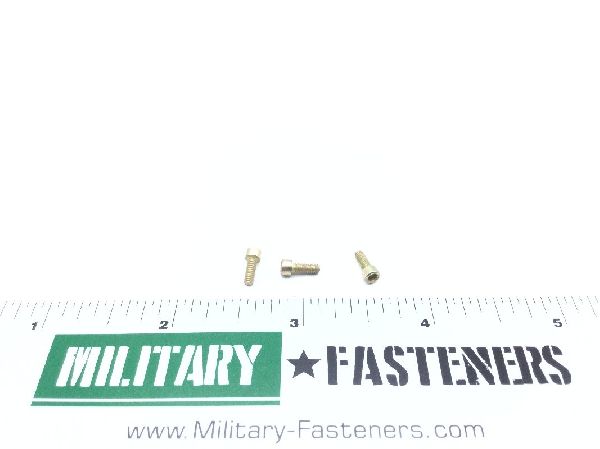

The Gould MS16997-2 is a machine screw with a 0.250-inch length and a 2-56 thread size. It features a Hexagon drive and is constructed from steel.

✓ Total Stock: 600 pcs

$ Price Range: $0.99

MS16997-2 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	600 pcs On Request	600 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MS16997-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Gould
Head Diameter	0.134 - 0.140 inches
Head Height	0.083 - 0.086 inches
Head Style	Flat chamfer
Material	Steel
SVHC Present	Not Present
Thread Length	0.230 inches

View Similar Products (0)

MS16997-2 Description

Short technical summary and product information.

The MS16997-2 machine screw from Gould is a high-strength fastener designed for demanding applications. It measures 0.250 inches in length with a thread diameter of 0.086 inches and a thread pitch of 56 TPI, conforming to the UNC coarse thread series.

This screw features a flat chamfer head style with a Hexagon internal drive, providing secure engagement. Constructed from steel, it boasts a minimum tensile strength of 160,000 psi and a minimum yield strength of 130,000 psi. The material is specified under Federal Standard 66, and the surface treatment is Cadmium and chromate, classified under Federal Specification Cl 3 Type 2 QQ-P-416.

The head diameter ranges from 0.134 to 0.140 inches, with a head height between 0.083 and 0.086 inches. The width across flats for the drive is between 0.078 and 0.079 inches. The thread class is 3a, and the thread direction is right-hand. The hardness rating is between 36.0 and 45.0 Rockwell C.

Packaged in quantities of 50, this screw is suitable for various industrial and military applications where reliability and durability are paramount.

MS16997-2 Quick Information

Product Type: Machine Screw

Canonical Name: MS16997-2 Machine Screw

Subcategory: Screws

MS16997-2 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MS16997-2 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MS16997-2 Features

0.250 inch fastener length.
2-56 UNC thread size.
Steel material construction.
Cadmium and chromate surface treatment.
Hexagon internal drive style.

MS16997-2 Applications

Ideal for mechanical assemblies.
Suitable for military applications.
Used in demanding environments.
Requires high tensile strength.

MS16997-2 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the length of the MS16997-2 machine screw?

The fastener length is 0.250 inches.

What is the thread size and series for the MS16997-2 screw?

The thread size is 2-56 with a thread quantity of 56 TPI, and it belongs to the UNC (coarse thread) series.

What material is the MS16997-2 machine screw made of?

The screw is made of Steel, specified under Federal Standard 66.

What is the surface treatment applied to the MS16997-2 screw?

The surface treatment is Cadmium and chromate, classified under Federal Specification Cl 3 Type 2 QQ-P-416.

What is the minimum tensile strength of the MS16997-2 screw?

The minimum tensile strength is 160,000 psi.

What is the drive style for the MS16997-2 machine screw?

The internal drive style is Hexagon.
