| Category | |
| Manufacturer Name | |
| Head Diameter | |
| Head Height | |
| Head Style | |
| Material | |
| Thread Length |

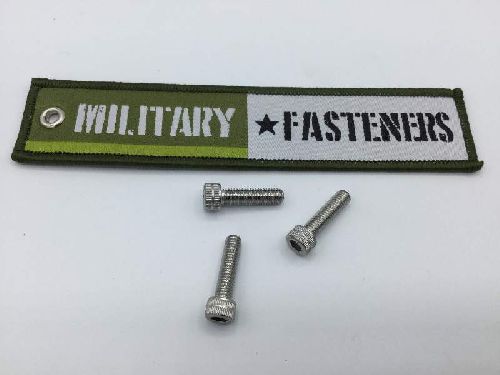

The MS16996-12 from Honeywell is a military standard socket head cap screw designed for robust applications. It features a length of 3/4 inches and a 10-32 UNF fine thread with a right-hand thread direction and 3A thread class.
Constructed from steel, this screw meets material specification 66 federal standard and is treated with a passivate surface finish conforming to QQ-P-35. Key mechanical specifications include a thread diameter of 0.190 inches, head diameter between 0.303 and 0.313 inches, and a head height between 0.185 and 0.190 inches. The width across flats is between 0.156 and 0.159 inches.
With a minimum yield strength of 30,000 psi and a minimum tensile strength of 80,000 psi, the MS16996-12 offers reliable performance. Its hardness rating is 80.0 Rockwell B. The fastener length is between 0.720 and 0.750 inches. This screw is specified for end applications such as MRAP RG-33.
The head style is flat chamfer with a hexagon internal drive style. The standard package quantity is 50 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MS16996-12 has a 0.190-32 UNF (Unified Fine) right-hand thread with class 3A fit.
It is made from steel, conforming to Federal Standard 66 (comp 302, 303, 304, 305, or 316).
The minimum tensile strength is 80,000 psi.
It has a flat chamfer head style and an internal hexagon drive.
The fastener length is between 0.720 and 0.750 inches.
The surface is passivated per specification QQ-P-35.
Cross-references include NAS1351C3-12 and NAS1351C312.
