| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Head Diameter | |
| Head Height | |
| Head Style | |
| Material | |
| Thread | |
| Thread Length |

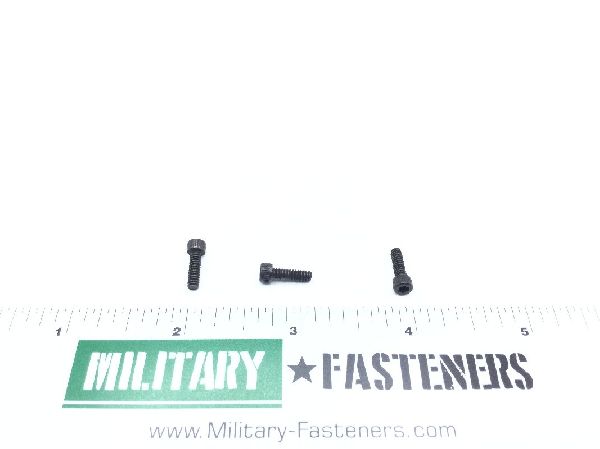

This MS16995-10B screw is manufactured by Q.P.L. and belongs to the MS16995 series. It has a fastener length between 0.345 and 0.375 inches and a thread size of 4-40.
The screw is constructed from steel with an oxide surface treatment, conforming to Mil-c-13924, ty 4. It features a flat chamfer head style and a hexagon internal drive style. The thread class is 3A with a right-hand thread direction and a thread series designator of UNC.
Key mechanical specifications include a nominal thread diameter of 0.112 inches, a width across flats between 0.094 and 0.095 inches, and 40 threads per inch. The minimum tensile strength is 80,000 psi, and the hardness rating is 80.0 Rockwell B. The material classification is 66 Fed Std.
This part is supplied with a minimum order quantity of 25.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fastener length is between 0.345 and 0.375 inches.
The thread size is 4-40 UNC.
The head style is Flat Chamfer and the internal drive style is Hexagon.
The screw is made of steel.
The surface treatment is oxide, conforming to Mil-c-13924, ty 4.
The minimum tensile strength is 80,000 psi.
The minimum order quantity is 25.
