| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Thickness |

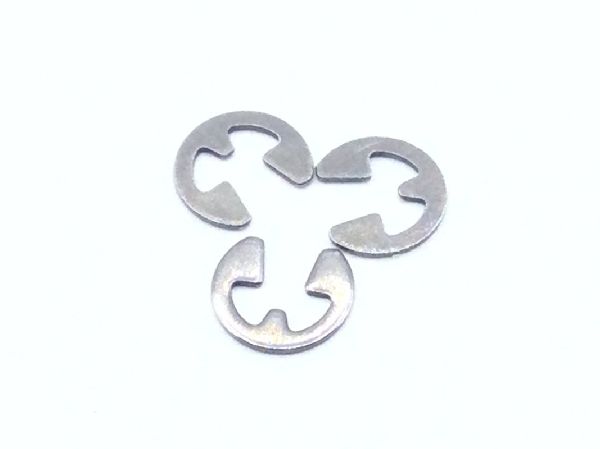

The MS16633-4006 retaining ring from American Ring is constructed from Carbon Spring Steel (SAE 1060-1090). It has a free diameter of 0.051 +0.001 / -0.003 inches and a thickness of 0.010 +0.001 / -0.001 inches.
This ring is designed for an application diameter of 0.062 inches, with a groove diameter specification of 0.052 +0.002 / -0.000 inches and a groove width of 0.012 +0.002 / -0.000 inches. The groove depth is specified at 0.005 inches.
Additional specifications include a free outside diameter of 0.156 inches and an outside diameter installed in the groove of 0.165 inches. The theoretical thrust load capacity for groove yield is 7 lbs, and for ring shear is 21 lbs. The approximate weight per 1000 units is 0.030 lbs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.93 | $1.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The free diameter ranges from 0.050 to 0.052 inches.
The thickness is between 0.009 and 0.011 inches.
It is made from Carbon Spring Steel (SAE 1060-1090).
The groove width is specified between 0.012 and 0.014 inches.
The theoretical thrust load capacity for ring shear is 21 lbs.
