| Category | |
| Manufacturer Name | |
| Material | |
| Material Thickness |

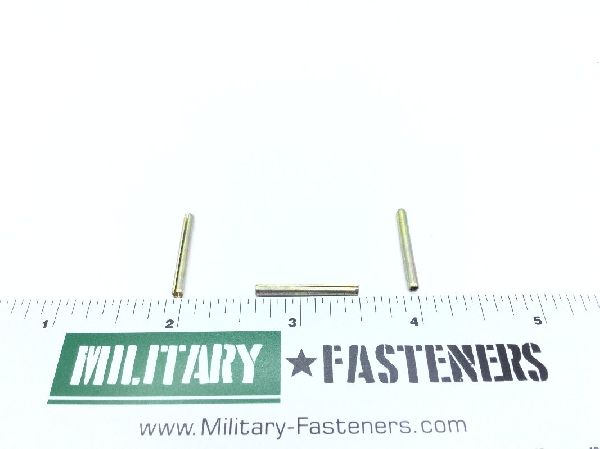

This MS16562-29 spring pin from Honeywell is a military standard component designed for various fastening applications. It is constructed from carbon steel with a cadmium and chromate surface treatment, meeting the 66 fed std material specification.
The pin has an overall length ranging from 0.860 to 0.890 inches and a diameter between 0.099 and 0.103 inches. The material thickness is nominally 0.022 inches. It also features a hardness rating between 46.0 and 53.0 Rockwell C and a shear strength of 1000 lb.
This slotted spring pin is supplied in a standard package of 100 pieces and meets RoHS3 compliance. Its robust construction makes it suitable for demanding environments where reliable fastening is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.86 to 0.89 inches.
0.099 to 0.103 inches.
Steel (compositions 1070-1095).
46 to 53 HRC.
1000 lb (double shear).
Cadmium and chromate.
100 pieces.
