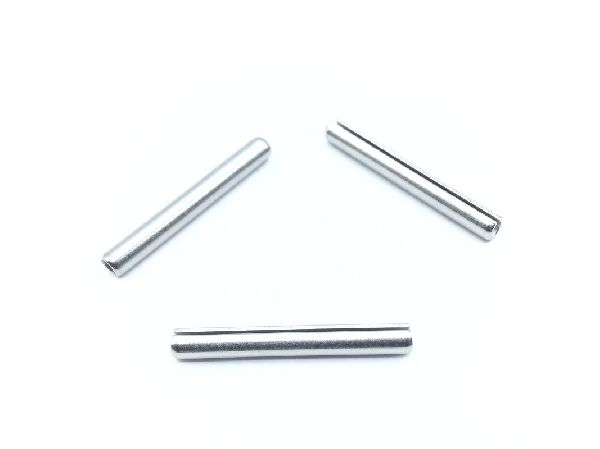

The MS16562-226 is a military standard spring pin manufactured by QPL. Constructed from steel (comp 410 or 420) with a passivate surface treatment conforming to QQ-P-35 federal specification, this pin offers corrosion resistance.
Key mechanical specifications include a diameter ranging from 0.131 to 0.135 inches and an overall length between 0.985 and 1.015 inches. The material thickness is 0.028 inches, and it has a hardness rating between 43.0 and 52.0 Rockwell C. The pin is slotted in style and has a shear strength of 2100 double pounds.
This component is classified under the MS16562 series and has an ECCN of EAR99. It is packaged in a standard quantity of 50 units and has an approximate pack weight of 0.117 lb.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The diameter is 0.131 to 0.135 inches.
The overall length is 0.985 to 1.015 inches.
It is made from Steel comp 410 or Steel comp 420.
The hardness rating is 43.0 to 52.0 Rockwell C.
The surface treatment is passivate per QQ-P-35 federal specification.
The shear strength is 2100 double pounds.
The style designator is Slotted.
