| Category | |
| Manufacturer Name | |
| Diameter | |
| Material | |
| Material Thickness |

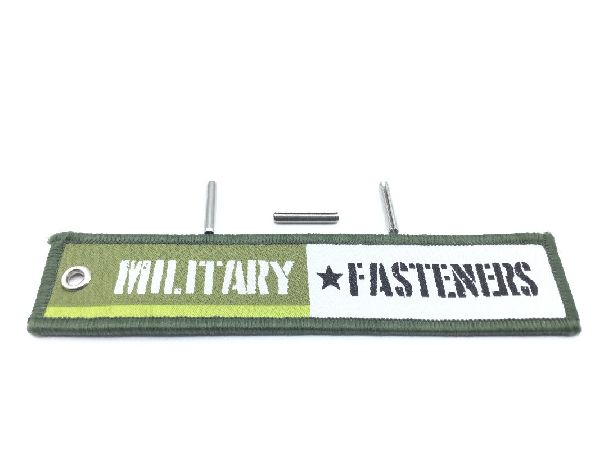

The MS16562-224 is a military standard spring pin from Gould, designed for robust applications. This pin measures 0.75 inches in overall length and has a diameter of 0.13 inches. It is constructed from corrosion-resistant steel, specifically steel comp 410 or steel comp 420, and features a passivate surface treatment.
The pin has a slotted style designator and meets material specification 66 federal standard. Its mechanical properties include a shear strength of 2100 pounds and a hardness rating between 43.0 and 52.0 Rockwell C. The material thickness is 0.028 inches.
This spring pin is packaged in quantities of 50 pieces per standard package, with each pack weighing approximately 0.088 lb. It is identified by NSN 5315-00-841-4442 and FSC 5315. The product series is MS16562.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.735 to 0.765 inches.
0.131 to 0.135 inches.
2100 lb.
43.0 to 52.0 HRC.
Steel comp 410 or Steel comp 420.
Passivate.
Slotted.
