| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
645 pcs
|
645 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Diameter | |
| Material | |
| Material Thickness | |
| Mounting Type |

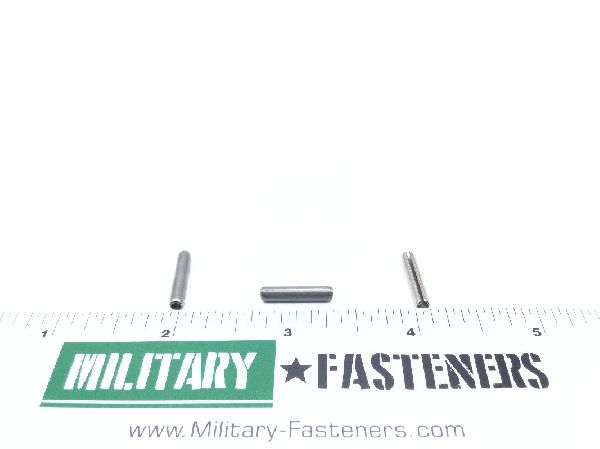

The MS16562-223 is a military standard spring pin from QPL, designed for reliable fastening applications. It measures 5/8 inches in length and 1/8 inches in diameter, with a material thickness of 0.028 inches.
Constructed from corrosion-resistant steel, this pin meets Federal Standard 66 and features a passivate surface treatment conforming to ASTM A380 standards. The pin has a slotted tubular design, providing flexibility and ease of installation. Its hardness rating ranges from 43.0 to 52.0 Rockwell C, ensuring durability.
This spring pin is suitable for various mechanical applications where a secure and resilient fastening solution is required. It is sold in pre-packaged bags of 50 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The shear strength is 2100 lb.
The diameter is between 0.131 and 0.135 inches.
The overall length is between 0.610 and 0.640 inches.
It is made from steel.
The hardness rating is between 43.0 and 52.0 HRC.
The surface treatment is passivate per ASTM A380 ASSN standard.
The style designator is Slotted.
