| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
408 pcs
|
408 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Material | |
| Material Thickness | |
| SVHC Present | |
| Surface Finish |

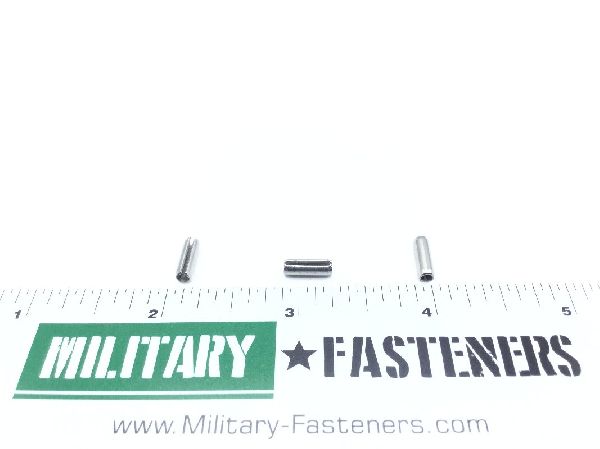

The Gould MS16562-219 is a military standard spring pin designed for various fastening applications. It features a slotted, tubular design for secure insertion and retention.
Key specifications include an overall length ranging from 0.360 to 0.390 inches and a diameter between 0.131 and 0.135 inches. The material thickness is a minimum of 0.028 inches. This pin is made from steel compliant with specification 66 fed std, offering corrosion resistance. The material is either Steel comp 410 or Steel comp 420, with a passivate surface treatment conforming to Astm a380 assn std.
Mechanical properties include a hardness rating between 43.0 and 52.0 Rockwell C, and a shear strength of 2100 pounds. The surface finish on the outside diameter is 80.0 microinches. The pin is classified under Style Designator: Slotted.
This component is supplied in a standard package of 100 pieces and has a minimum order quantity of 100. It is RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The overall length of the MS16562-219 spring pin ranges from 0.360 to 0.390 inches.
The diameter of the MS16562-219 spring pin is between 0.131 and 0.135 inches.
The MS16562-219 spring pin is made from Steel comp 410 or Steel comp 420, compliant with 66 fed std.
The hardness rating of the MS16562-219 spring pin is between 43.0 and 52.0 Rockwell C.
The shear strength of the MS16562-219 spring pin is 2100 pounds.
The MS16562-219 spring pin is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the MS16562-219 spring pin is 1 Unlimited.
