Mfr Part #:

MS122078

Mfr Name: QPL

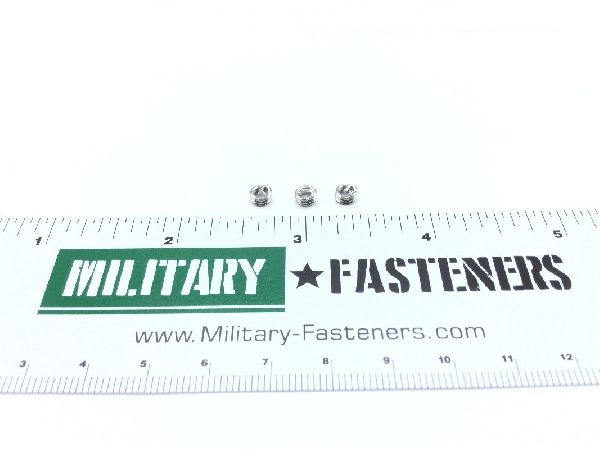

The MS122078 is a screw thread insert manufactured by QPL. It features a 1/8" thread size and is made of stainless steel.

✓ Total Stock: 450 pcs

$ Price Range: $0.99

MS122078 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	450 pcs On Request	450 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MS122078 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	QPL
Length	0.138"
Material	Stainless Steel
Thread Size	0.138" inch

View Similar Products (0)

MS122078 Description

Short technical summary and product information.

The MS122078 is a screw thread insert from QPL, designed for robust thread repair and reinforcement. This insert features a 1/8" thread size with a UNC coarse thread series, ensuring compatibility with standard fasteners. Constructed from durable stainless steel, it offers excellent corrosion resistance and longevity.

The insert has a length of 0.138 inches and an outer diameter ranging from 0.178 to 0.193 inches. It operates with a right-hand thread direction and features a coil style designator. The surface treatment is passivated, further enhancing its protective qualities. The material specification adheres to AMS 7245 standards.

This component is supplied with a minimum order quantity of 50 units, packaged in standard increments of 50. Manufacturer certifications are provided free of charge with your order.

MS122078 Quick Information

Product Type: Screw Thread Insert

Series: MS1220

Canonical Name: MS122078 Screw Thread Insert

Subcategory: Screw Thread Insert

MS122078 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MS122078 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MS122078 Features

UNC coarse thread with 32 TPI.
Right-hand coil style screw thread insert.
Passivated stainless steel per AMS 7245.
Insert size ranges from 0.178 to 0.193 inch.
Military standard MS1220 series insert.

MS122078 Applications

Repairs damaged internal threads in metal components.
Installs into aluminum alloys to strengthen threaded holes.
Used for aerospace and military fastener repair.
Provides durable steel threads in softer materials.
Suitable for precision thread repair applications.

MS122078 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the thread size of the MS122078 insert?

The thread size is 1/8" and 0.138 inches.

What thread series does the MS122078 use?

It uses the UNC (coarse thread) series.

What material is the MS122078 insert made of?

The insert is made of stainless steel.

What is the length of the MS122078 insert?

The length is 0.138 inches.

What is the RoHS status of the MS122078?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for MS122078?

The MSL is 1 Unlimited.

What is the REACH status for MS122078?

The REACH status is REACH Unaffected.
