| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Primary Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

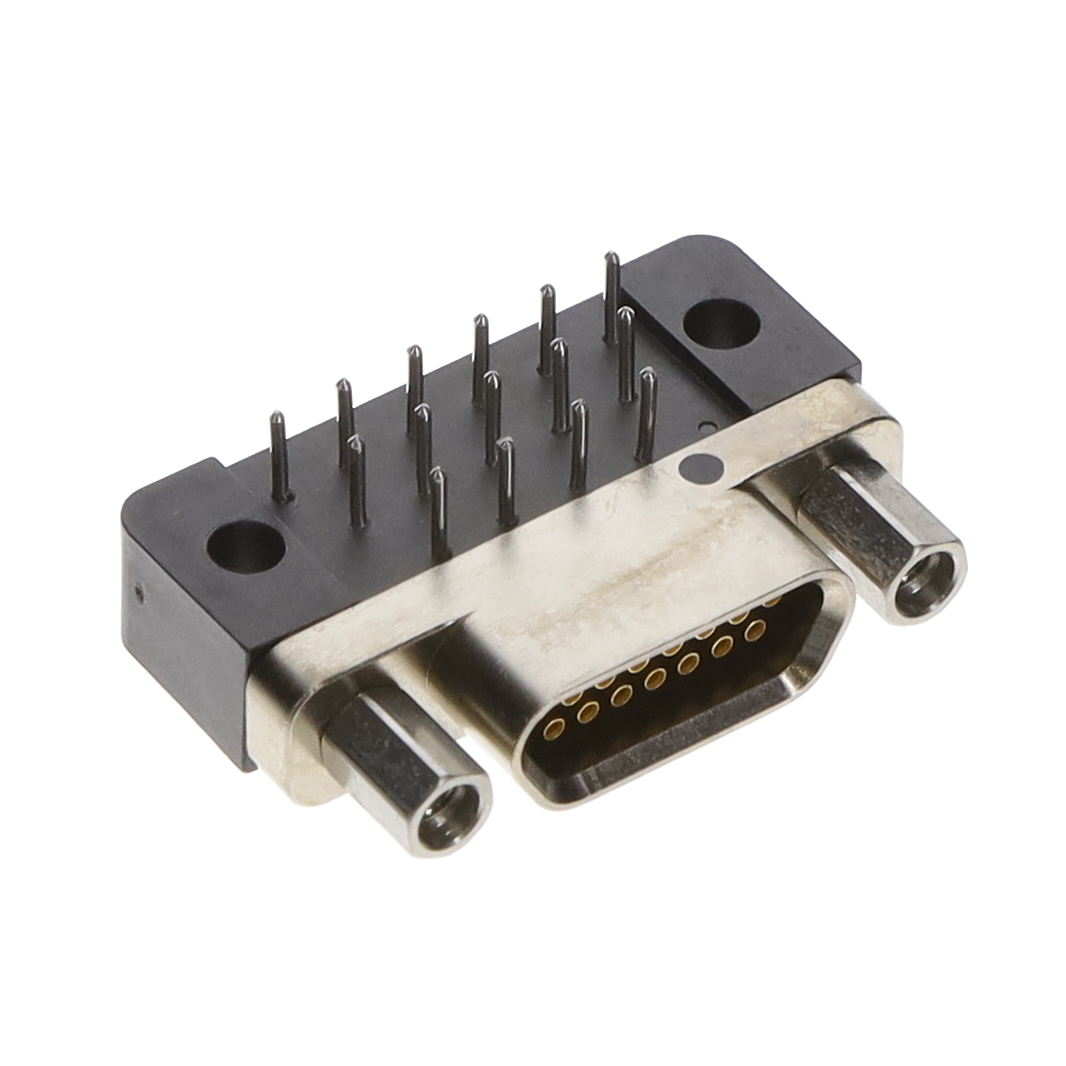

The AirBorn MS-262-015-435-220S is a Micro-D receptacle connector designed for reliable signal interconnections in dense electronic assemblies. It features 15 female socket positions arranged in 2 rows on a 0.050 inch pitch with a 0.050 inch row-to-row spacing, making it suitable for compact PCB layouts.
This connector uses a through hole, right angle mounting style with solder termination for secure attachment to printed circuit boards. The contacts are gold plated with a thickness of 50.0 microinches (1.27 micrometers), providing excellent corrosion resistance and reliable electrical performance over repeated mating cycles. The metal shell is constructed from aluminum alloy with an electroless nickel plating, offering durability and EMI shielding.
The connector includes a flange feature with mating side female screwlocks (2-56) for secure panel or cable attachment. It is rated for a current of 3A per contact and is designed for signal-level applications. The primary material is metal, ensuring robust mechanical performance in demanding environments.
It is a receptacle with female sockets in a D-Type, Micro-D style.
It has 15 positions arranged in 2 rows.
Mounting type is through hole, right angle, with solder termination.
The current rating is 3A per contact.
The contact finish is gold with a thickness of 50.0µin (1.27µm).
The shell is aluminum alloy with electroless nickel plating.
It has a mating side female screwlock (2-56) flange feature.
