| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Primary Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

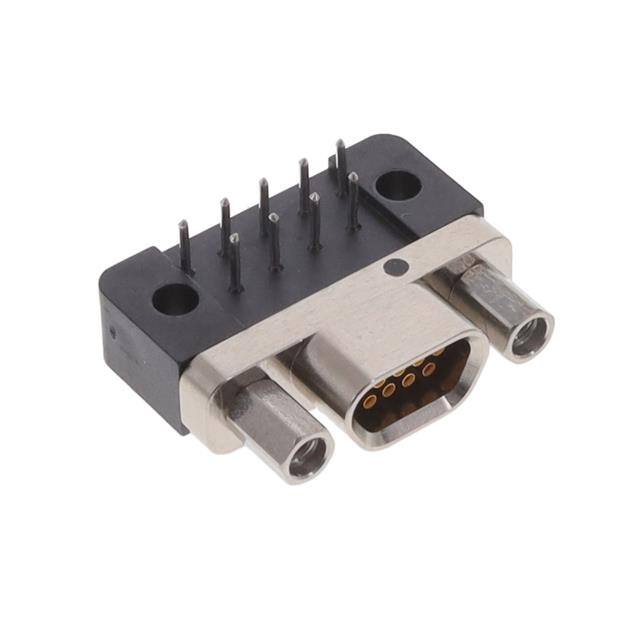

The AirBorn MS-262-009-435-220S is a 9-position, 2-row Micro-D receptacle connector designed for high-density signal interconnections. It is rated for 3A per contact and features signal contacts with gold plating (1.27 µm thickness) for reliable conductivity and corrosion resistance. The connector uses a through-hole right-angle solder termination, making it suitable for compact PCB layouts where space is constrained.
The shell is constructed from aluminum alloy with electroless nickel plating, providing durability and EMI shielding. The connector style is D-Type Micro-D with a 0.050 inch contact pitch and 0.050 inch row spacing. It includes a flange feature with female screwlocks (2-56) on the mating side for secure mechanical attachment. The primary material is metal, supporting robust use in demanding environments.
9 positions arranged in 2 rows.
3A per contact.
0.050 inch pitch with 0.050 inch row spacing.
Through hole, right angle.
Gold with a thickness of 1.27 µm (50.0 µin).
Aluminum alloy with electroless nickel plating.
