| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Center Contact Plating | |
| Center Gender | |
| Contact Resistance | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Fastening Type | |
| Frequency | |
| Impedance | |
| Insulation Resistance | |
| Mating Cycles | |
| Mounting Type | |
| Operating Temperature | |
| Style | |
| Weight | |
| Withstanding Voltage |

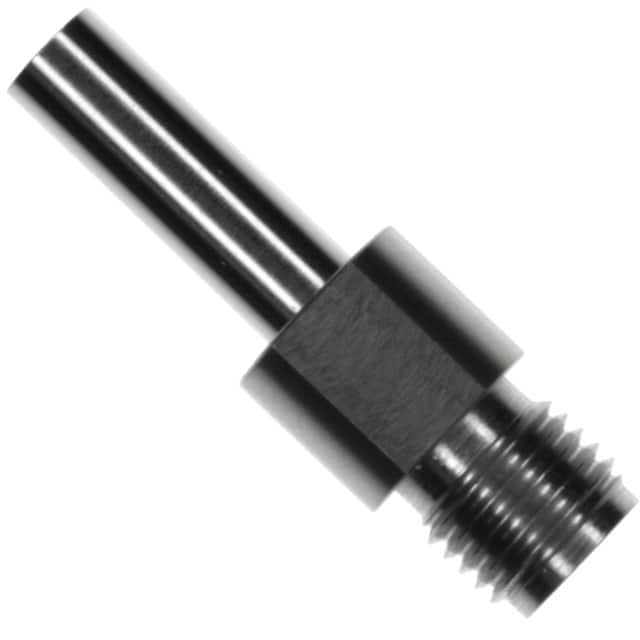

The MS-162-HRMJ-1 from Hirose Electric is a between-series coaxial adapter designed to convert a coaxial switch plug (4mm plug diameter, male pin) to an SMA jack (female socket). This straight-style adapter features a push-pull fastening on the switch side and threaded fastening on the SMA side, ensuring secure connections in test and measurement setups.
Electrical performance includes a 50 Ohm impedance and a frequency range from DC to 10 GHz. Typical insertion loss is 0.08 dB at 1 GHz and 0.12 dB at 2 GHz. Contact resistance is 100 mOhm maximum, insulation resistance is 1000 MOhm minimum, and the adapter withstands 100 V AC for one minute. The operating temperature range is -55°C to +85°C.
Mechanically, the adapter supports 12,000 mating cycles and weighs only 0.044 g. Center contacts are gold-plated for reliable signal integrity. The part is packaged on tape and reel for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $30.89 | $30.89 |
| 10+ | $26.26 | $26.26 |
| 25+ | $24.61 | $24.61 |
| 50+ | $23.44 | $23.44 |
| 100+ | $22.32 | $22.32 |
| 250+ | $20.92 | $20.92 |
| 500+ | $19.93 | $19.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
DC to 10 GHz.
0.08 dB typical.
12,000 cycles.
-55°C to +85°C.
Gold.
Yes, RoHS compliant.
