| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,342 pcs
|
1342 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Resistance | |
| Contact Termination | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Insulation Resistance | |
| Mating Cycles | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature Range | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style | |
| Weight | |
| Withstanding Voltage |

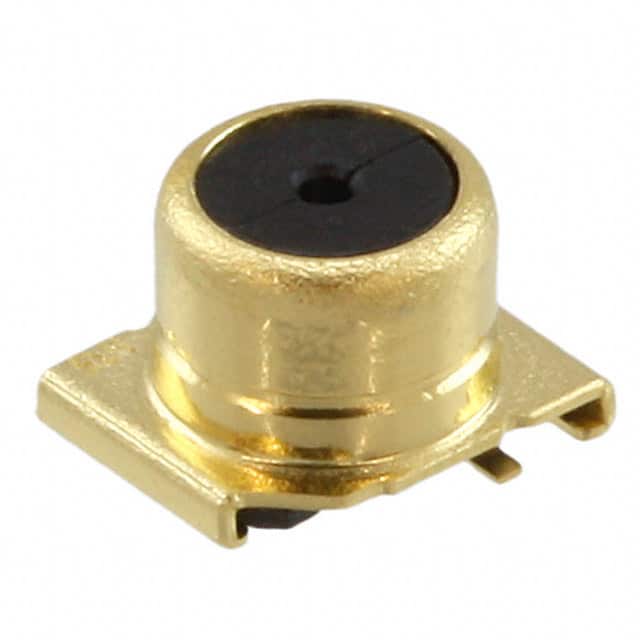

The MS-162(01) is a miniature interface coaxial switch receptacle from Hirose Electric, designed for DC to 10 GHz operation. It features an internal switch design that normally closes the circuit, redirecting to the plug side when mated. The receptacle offers low insertion loss of 0.08 dB typical at 1 GHz and 0.12 dB typical at 2 GHz.\n\nKey specifications include 50 Ohm impedance, 100 mA current rating, and 12,000 mating cycles minimum. The contact is made of beryllium copper with solder termination, and the housing is gold. The receptacle has a snap-on fastening type and a 4mm plug diameter connector style.\n\nThe surface mount package occupies only 3.5 mm x 3.1 mm board space with a low profile of 2.5 mm max above the board. It is lightweight at 0.044 g and packaged on tape and reel for automated assembly. The operating temperature range is -55°C to +85°C.\n\nTypical applications include wireless communication modules (Bluetooth, WLAN, UWB, ZigBee), portable terminals, notebook computers, GPS terminals, and other devices requiring antenna connection and circuit testing. The product is RoHS3 compliant.
Surface Mount.
100 mA maximum.
100 V AC and 100 V DC for 1 minute.
50 Ohm.
DC to 10 GHz.
0.08 dB typical at 1 GHz and 0.12 dB typical at 2 GHz.
Yes, RoHS3 compliant.
