MS-151NB Hirose MS-151NB is a 50 Ohm coaxial switch receptacle with a snap-on fastening, designed for surface mount right-angle installation. It operates from DC to 3 GHz and includes an internal switch.
Mfr Part #:

MS-151NB

Available from 1 distributors
Mfr Name: Hirose Electric
Hirose Electric
Hirose MS-151NB is a 50 Ohm coaxial switch receptacle with a snap-on fastening, designed for surface mount right-angle installation. It operates from DC to 3 GHz and includes an internal switch.
✓ Total Stock: 98 pcs

MS-151NB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
98 pcs
On Request
98 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MS-151NB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Resistance
Contact Termination
Durability
Fastening Type
Features
Frequency
Housing Color
Impedance
Insertion Loss
Insulation Resistance
Lead Style
Mounting Type
Number of Ports
Operating Temperature Range
Power Rating
Shield Termination
Tape & Reel
VSWR
Withstanding Voltage
View Similar Products (0)

MS-151NB Description

Short technical summary and product information.

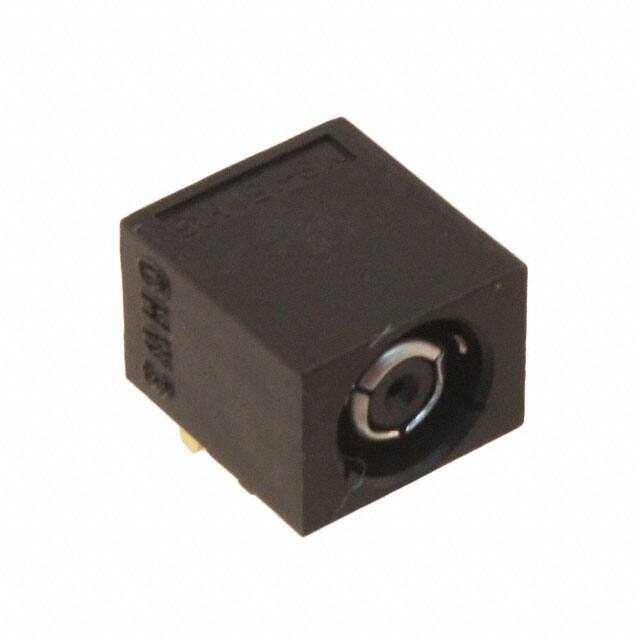

The Hirose MS-151NB is a coaxial switch receptacle designed for applications requiring redirection of transmission from an internal antenna to an external antenna. It features a female socket connector with a snap-on fastening type and is configured for surface mount, right-angle mounting.



This connector operates over a frequency range from DC to 3 GHz with a characteristic impedance of 50 Ohms. It has a power rating of 4 W and an operating temperature range of -40°C to +85°C. The receptacle includes an internal switch and provides a built-in interlock for connection confirmation.



The MS-151NB is packaged on tape and reel for automated board placement. It has a black housing, a phosphor bronze center contact, and both contact and shield terminations are solder type.

MS-151NB Quick Information

Product Type: Coaxial Switch Connector
Series: MS-151NB
Canonical Name: Hirose Electric MS-151NB Coaxial Switch Receptacle, Female Socket, 50 Ohm, SMT
Subcategory: Receptacle, Female Socket

MS-151NB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

MS-151NB Features

  • 50 Ohm impedance coaxial switch receptacle.
  • Operates from DC to 3 GHz frequency.
  • Snap-on fastening for secure connection.
  • Internal switch for signal redirection.
  • Rated for 5000 insertion/removal cycles.

MS-151NB Applications

  • Ideal for wireless LAN module applications.
  • Used in GPS terminal antenna switching.
  • Suitable for notebook computer RF circuits.
  • Designed for PDA and portable devices.
  • Works in 2.4 GHz band wireless systems.

MS-151NB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the MS-151NB?

The MS-151NB has a characteristic impedance of 50 Ohms.

What is the maximum operating frequency of this connector?

The maximum operating frequency is 3 GHz.

What type of mounting does the MS-151NB use?

It uses surface mount, right-angle mounting.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

Does the MS-151NB have an internal switch?

Yes, it features an internal switch.

What is the power rating of this connector?

The power rating is 4 W.

What is the durability rating for the MS-151NB?

It is rated for 5000 insertion/removal cycles.
