| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Current Rating (Max) | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Lead Spacing | |
| Lead Style | |
| Mating Cycles | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature Range | |
| Shield Termination | |
| Storage Temperature | |
| Tape & Reel | |
| Withstanding Voltage |

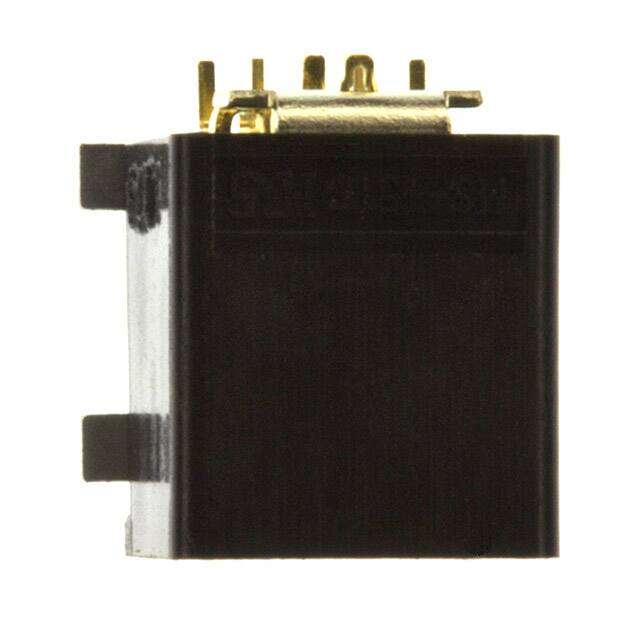

The Hirose MS-151C is a coaxial switch receptacle designed for RF applications requiring signal re-direction. It features a 50 Ohm impedance and supports frequencies up to 6 GHz, making it suitable for high-frequency wireless modules and equipment.
This receptacle uses a snap-on fastening type and is mounted in a surface mount, right angle orientation. It includes an internal switch feature and is rated for 5000 mating cycles. The housing is black, and the center contact is made of phosphor bronze.
Electrical ratings include a maximum current of 100 mA and a maximum voltage of 100 V DC. The connector is RoHS3 compliant and operates over a temperature range of -55°C to +85°C.
The impedance is 50 Ohm.
The maximum frequency is 6 GHz.
The mounting type is surface mount, right angle.
The maximum current rating is 100 mA.
The maximum voltage rating is 100 V DC.
It is rated for 5000 mating cycles.
The operating temperature range is -55°C to +85°C.
