| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Diameter | |
| Mounting Type |

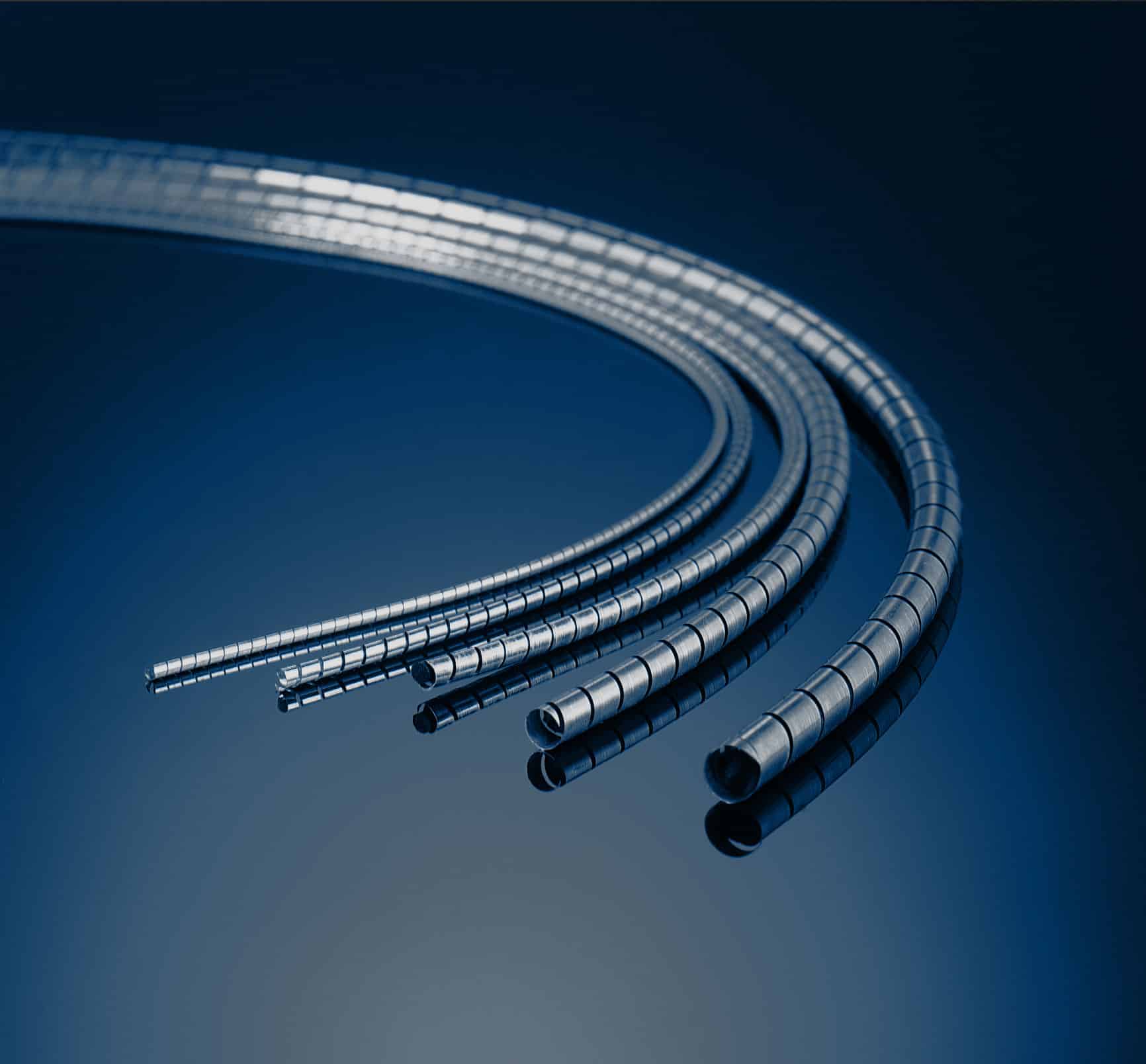

The Spira-Shield MS-.070 is a specialized EMI gasket solution from Spira Manufacturing Corp., designed for high-shielding applications in military, aerospace, and commercial sectors. The patented spiral design is wound from spring temper beryllium copper, providing excellent spring memory and resistance to compression set. The spiral is tin-plated for superior conductivity and shielding properties, with unplated edges.
This particular model, MS-.070, has a nominal diameter of 0.070 inches. It is designed for groove mounting and requires specific groove dimensions for optimal performance: a depth (L) of 0.053 inches, a width (G) of 0.094 inches, and a width (W) of 0.067 inches. The gasket can achieve shielding quality up to 165 dB, though actual performance may vary based on the specific application.
An optional 80 durometer PVC cord can be added, though this may require additional lead time. Standard force gaskets come without a cord. The Spira-Shield series is known for solving challenging shielding problems where other gaskets may not suffice, offering a competitive cost for high-shielding requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal diameter of the MS-.070 Spira-Shield gasket is 0.070 inches.
The spiral is made of tin/lead plated beryllium copper, and an optional cord is available in 80 durometer PVC.
The MS-.070 gasket offers shielding quality up to 165 dB.
The recommended groove dimensions are: Depth (L) 0.053", Width (G) 0.094", and Width (W) 0.067".
The MS-.070 gasket is designed for groove mounting.
