| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,329 pcs
|
7329 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Consumption | |
| Mounting Type | |
| Supplier Device Package | |
| Supply Voltage |
The MRMS501A from NEC is a magnetic switch designed for various sensing applications. It operates with a supply voltage ranging from 1.6V to 3.5V, making it suitable for low-power circuits.
Key electrical characteristics include a maximum supply current consumption of 3 uA and output voltage levels of 1.6V (high) and 0.2V (low) under specific load conditions. The device features an operating magnetic field sensitivity of 2.5 mT and a release sensitivity of 0.5 mT.

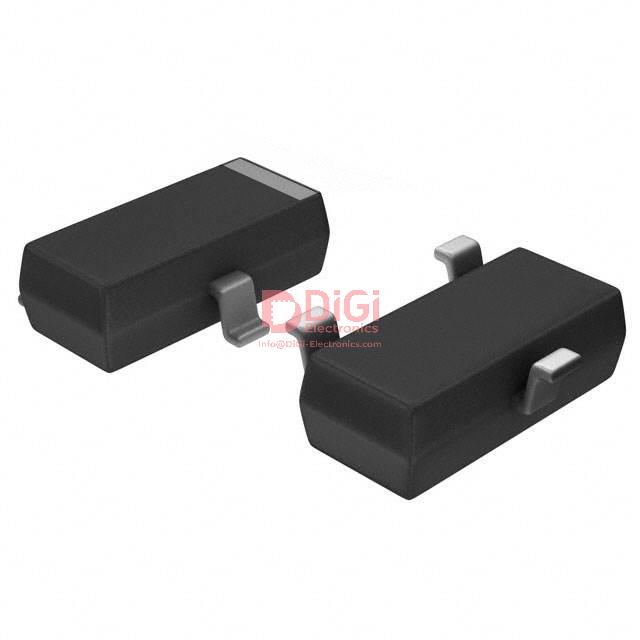

This magnetic switch is built for surface mounting, utilizing a TO-236-3, SC-59, or SOT-23-3 package. It maintains reliable operation within an extended temperature range of -40°C to 85°C, suitable for demanding environments. The datasheet also specifies a storage temperature range of -40°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.03 | $0.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range for the MRMS501A is 1.6V to 3.5V.
The typical current consumption for the MRMS501A is 3 uA at 1.8V supply.
The MRMS501A operates within a temperature range of -40°C to 85°C.
The MRMS501A is available in a surface mount package, specifically TO-236-3, SC-59, or SOT-23-3.
The operating magnetic field (Hon) for the MRMS501A is a maximum of 2.5 mT at +25°C and 3.0 mT at -40~+85°C.
The release magnetic field (Hoff) for the MRMS501A is a maximum of 0.5 mT at +25°C and 0.2 mT at -40~+85°C.
